E6NC1069 7P Suntec Oil Pump - E6NC1069 7P | Combustion Controls Burner Components

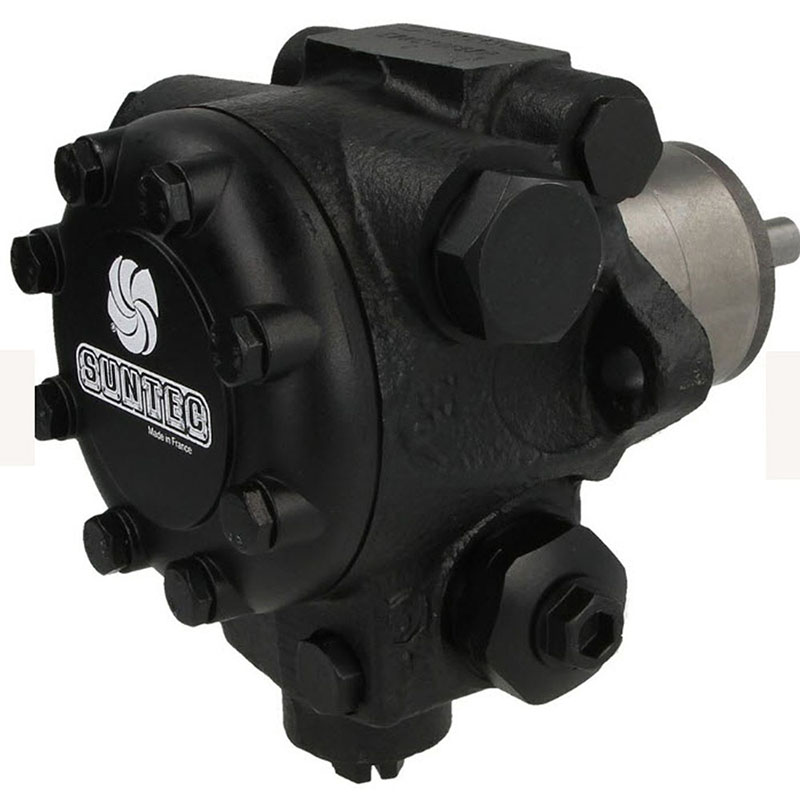

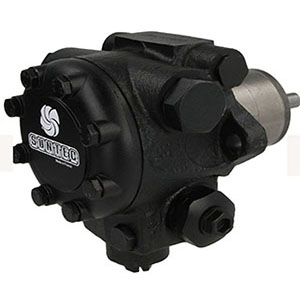

E6NC1069 7P - Suntec Oil Pump

Type: E6NC1069 7P

Capacity (l/h): 257 - 271 l/h @ 20 cSt viscosity

Nozzle pressure range: 14 - 30 bar

Shaft rotation (C): Anti clockwise (seen from shaft end)

Nozzle location (C): Left hand nozzle (seen from shaft end)

Mounting: Flange mounting

Brand: Suntec

Condition : New

Stock: 1 pc (Subject to availability)

Price: Available on request

Location: Brands > Suntec > E6NC1069

E6NC1069

The Suntec E1069 oil pump is designed specially for heavy oil applications. It is fitted with a special type shaft seal resisting high temperature and with a preheater location to render cold starting easier.

Applications

Heavy oil.

One or two-pipe system.

Pump associated with in-line solenoid valve to assure cut-off function.

Technical Data

Type: E6NC1069 7P

Capacity (l/h): 257 - 271 l/h @ 20 cSt viscosity

Nozzle pressure range: 14 - 30 bar

Shaft rotation (C): Anti clockwise (seen from shaft end)

Nozzle location (C): Left hand nozzle (seen from shaft end)

Mounting (1): Flange mounting

069: body with preheater cavity; model without cut-off function

7: Revision number

P: by-pass plug installed in return port for two-pipe operation

Oil temperature: 0 - 130°C in the pump.

Inlet and return connections: G 1/2

Nozzle outlet: G 1/4

Pressure gauge port: G 1/8

Shaft: Ø 11mm

Weight: 4kg without packing

For more information on technical data, please refer to data sheet.
