XUK2APANL2R - Photoelectric Sensor

Type: XUK2APANL2R

Detection type: Thru beam (receiver)

Output type: PNP (Discrete)

Rated supply voltage: 12-24 VDC

Discrete output function: 1 NO

Nominal sensing distance: 30 m thru beam

Switching capacity: 100 mA

Brand: Telemecanique / Schneider Electric

Qty in stock: 1 pc

Price: Available on request

Product location: Brands > Telemecanique > XUK2APANL2R

XUK2APANL2R

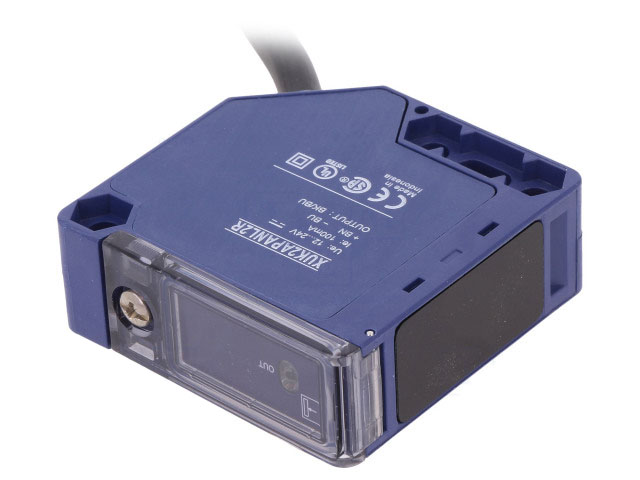

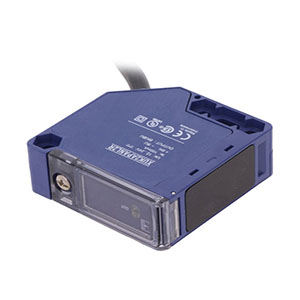

XUK2APANL2R - photo-electric sensor - XUK - receiver - Sn 30m - 12..24 VDC with reverse polarity protection - 100 mA - cable 2m





















Rated supply voltage: 12-24 VDC with reverse polarity protection

Output type: PNP

Type of output signal: Discrete

Discrete output function: 1 NO

Switching capacity: 100 mA

Detection system: Thru beam

Emission: Infrared thru beam

Max. sensing distance: 45 m thru beam

LED status: 1 LED (yellow) for output state

Cable length: 2 m

Operating temperature: -25 to +55 °C

Weight: 0.034 kg approx. without plug-in base and packing.

For more information on technical data, please see data sheet attached.











If you have any questions about this product please email us at saadwaheed09@gmail.com
