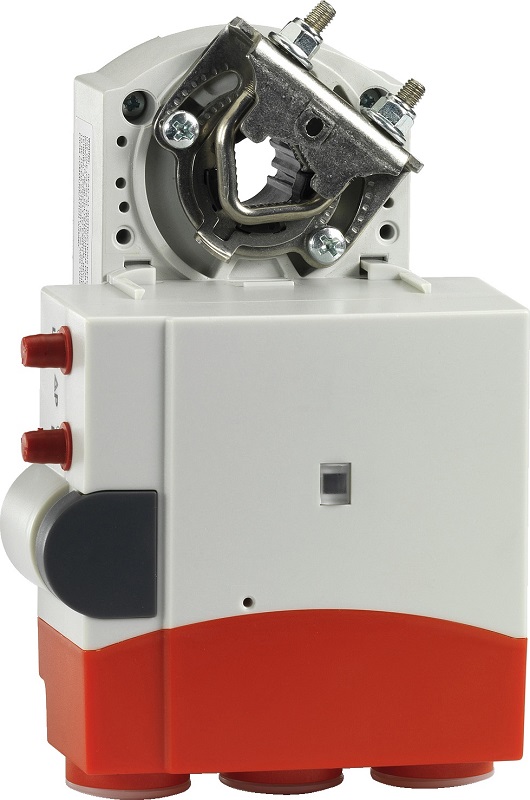

W7751H3007 - Excel 10 Smart VAV Actuator

Type: W7751H3007

Power supply: 24 Vac 50/60 Hz.

Torque: 6 Nm

Stroke: 95 degree

Timing: 90 sec. at 60Hz, 110 sec. at 50Hz

Brand: Honeywell

Origin: Made in Germany

Condition: New

Stock: Subject to availability

Price: Available on request

W7751H3007

The W7751H3007 Smart VAV Actuator consists of a factory-integrated Variable Air Volume (VAV) Box Controller and a 90-second Direct-Coupled Actuator, and belongs to the Excel 10 family product line. The W7751H3007 provides pressure-independent air flow control and pressure-dependent damper control. Generally speaking, VAV systems only provide cool air to the zones. The W7751H3007 provides two additional outputs which control a fan or VAV box reheat coils. The heaters can be staged electric or modulating hot water heaters.






















Power supply: 24 Vac with a valid range of 20 to 30 Vac at 50/60 Hz.

Torque: 6 Nm

Stroke: 95 degree

Timing: 90 sec. at 60Hz, 110 sec. at 50Hz

Power consumption: 6 VA maximum at both 50 and 60 Hz.

Differential pressure range: 0 to 0.5 kPa (max.) for the onboard flow sensor.

Maximum duct area: 0.372 m2 (4 ft2)

Noise Emissions: Max. noise emissions of 35 dB.

Dimensions (H/W/D): 142 x 103 x 76 mm.

For more information on technical data, please see data sheet.














If you have any questions about this product please email us at saadwaheed09@gmail.com
