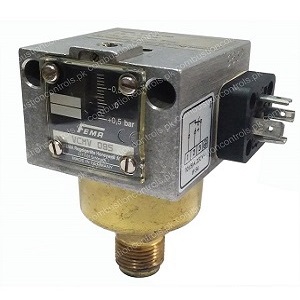

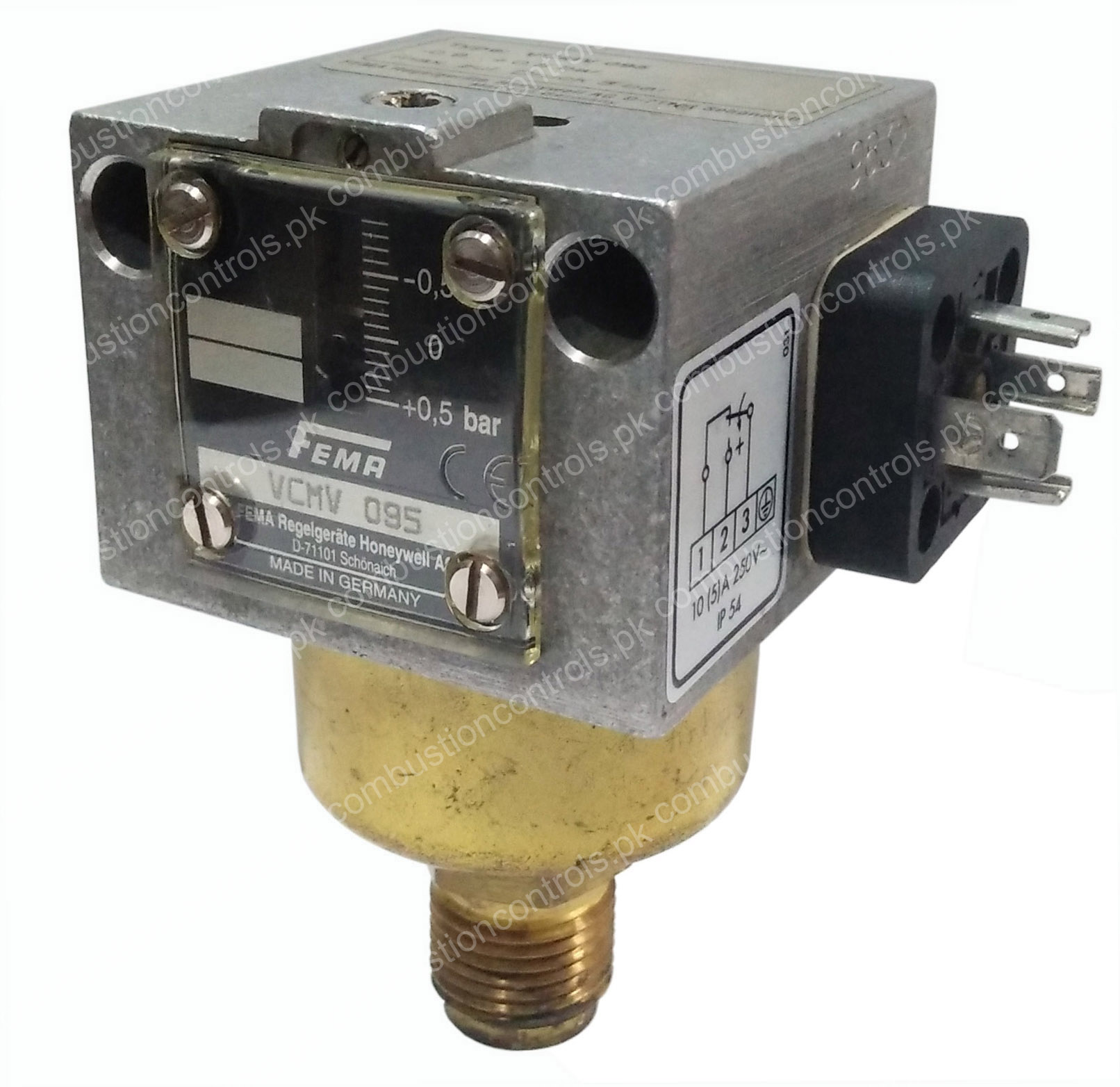

VCMV095 - Vacuum Pressure Switch

Type: VCMV095

Setting range: -0.9...+0.5 bar

Switching differential: 90 - 400 mbar

Max. permissible pressure: 3 bar

Product category: Vacuum Pressure Switches

Brand: Honeywell

Origin: Germany

Price: Available on request

FEMA negative pressure switches detect the pressure difference relative to atmospheric pressure. All data relating to the switching pressure ranges and thus also the scale divisions on the switching devices are to be understood as the difference in pressure between the relevant atmospheric pressure and the set switching pressure. The "zero" reference point on the scale of the unit corresponds to the relevant atmospheric pressure.

Setting range: -0.9...+0.5 bar

Switching differential: 90 - 400 mbar

Max. permissible pressure: 3 bar

Max. operating temperature: + 70 C

Min. operating temperature: - 25 C

Operating supply current: 8 A

Pressure connection: G 1/2" external

Pressure connection: G 1/4" internal
