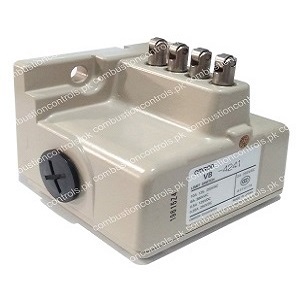

VB-4241 - 4 Plungers Limit Switch

Model: VB-4241

Number of plungers: 4

Rated voltage: 125, 250VAC

Rated frequency: 50/60 Hz

Brand: Omron, Japan

Condition: New

Quantity in stock: 1pc

Price: Available on request

These Multiple-pole limit switches can be used in sequence control of machine tools, transfer machines, and other equipment.

A New Monoblock Multiple Limit Switch Incorporating a Head Box with a Tough Head and Ensuring High Sealing Performance and a Mechanical Durability of 5,000,000 Operations

  • Used for the sequential control of a variety of engineering machines and belt conveyor lines.
  • Built-in oil filter shuts out oil and water.
  • Approved by EN, IEC (Ground terminal models only.) and CCC (Chinese standard). Ask your OMRON representative for information on approved models.
  • Ground terminal models bear the CE mark.




















    • Specifications

    Number of plungers: 4

    Actuator: Roller plunger

    Switch box: Non-flange switch box with two conduit holes on the side.

    Scrapper: NBR scrapper

    Contact: 10 A (standard)

    Operating speed: 0.1 mm to 0.5 m/s

    Ambient operating temperature: -10 °C to +80 °C





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
