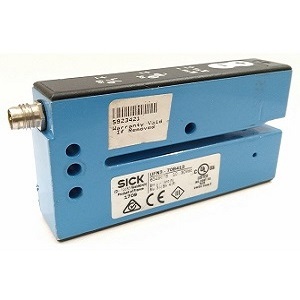

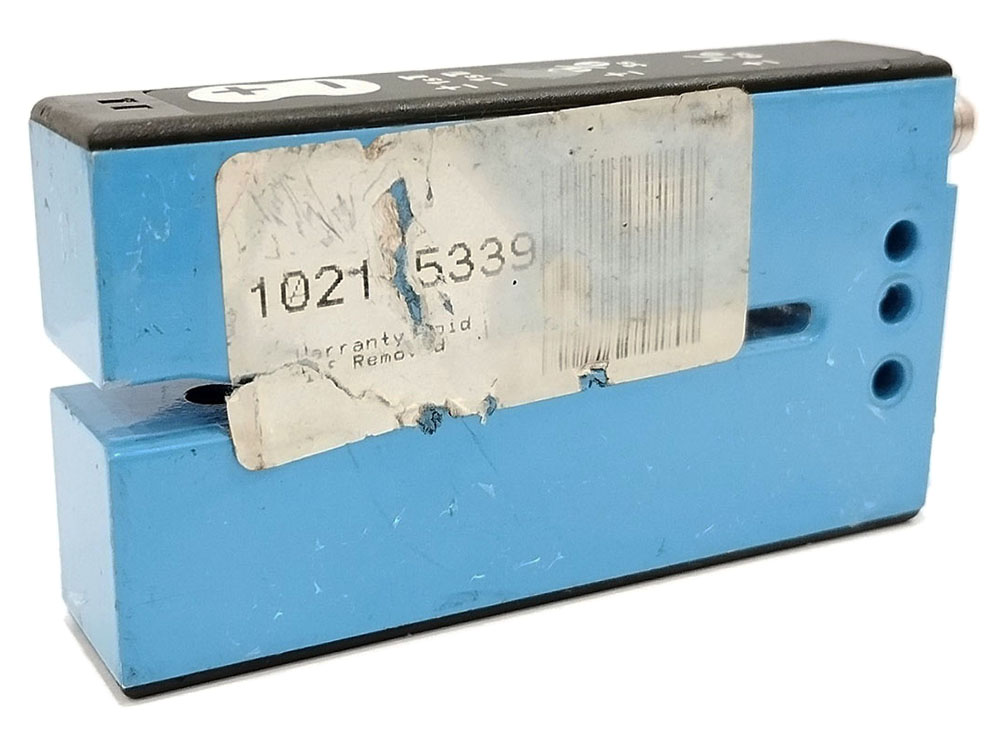

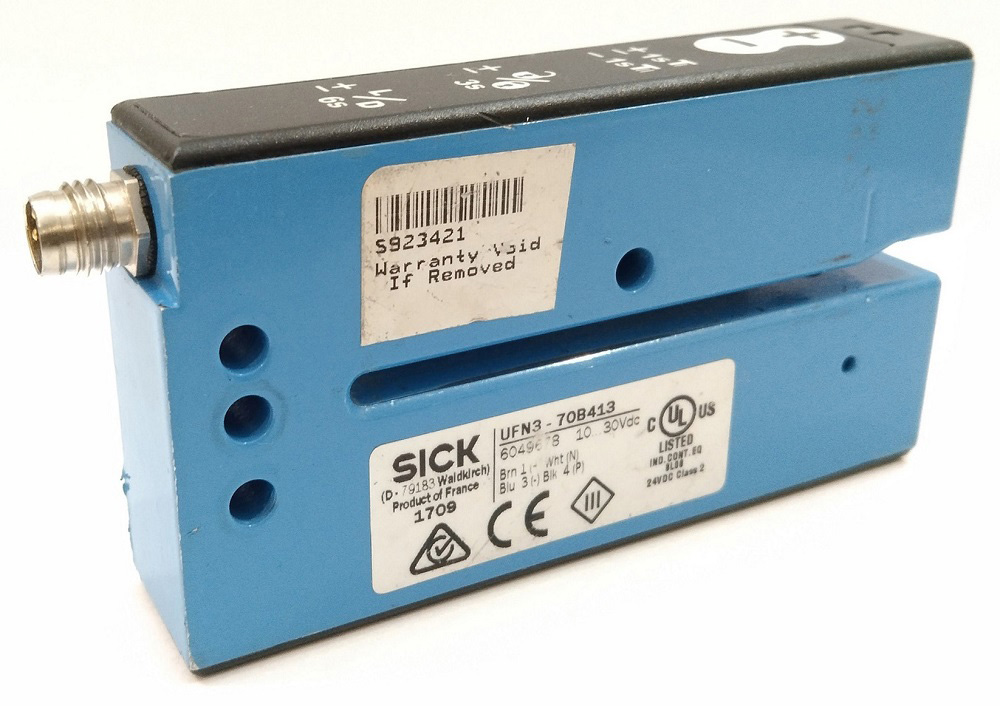

UFN3-70B413 - SICK Fork Sensor

Type: UFN3-70B413

Part number: 6049678

Functional principle: Ultrasonic detection

Fork width: 3 mm

Fork depth: 69 mm

Supply Voltage: 10...30 VDC

Switching output: PNP, NPN

Brand: SICK

Condition: New (without box)

Availability: 1 piece in stock

Price: Available on request

Product Location: Brands > SICK > UFN3-70B413 (listed alphabetically)

Product description

The UF ultrasonic sensors reliably detects labels and materials, regardless of printed design, transparency or surface characteristics. Unlike optical sensors, the UF3 relies on damping - a process where the thickness of a material determines the degree to which the sensor absorbs sound waves. The UF3 can distinguish between labels located just 2 mm apart from one another on an adhesive tape. Applications include detecting transparent labels on transparent substrates, detecting labels with different printed designs or differentiating between single- and two-ply materials.



















Type: UFN3-70B413

Part number: 6049678

Functional principle: Ultrasonic detection

Fork width: 3 mm

Fork depth: 69 mm

Adjustment: Plus/minus button

Supply Voltage: 10...30 VDC

Switching output: PNP, NPN

Dimensions (W x H x D): 18 mm x 47.5 mm x 92.5 mm

Connection type: Male connector M8, 4-pin

Ambient operating temperature: +5 ... +55 °C


For more information on technical data, please see data sheet.





















If you have any questions about this product please email us at saadwaheed09@gmail.com
