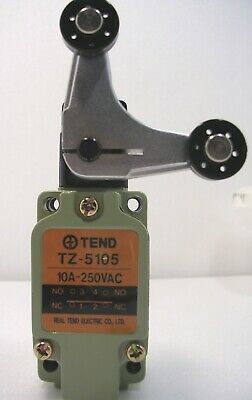

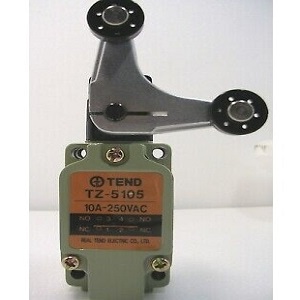

TZ-5105 - Fork Lever Lock Limit Switch

Type: TZ-5105

Actuator type: Fork Lever Lock Actuator

Rated voltage: 250VAC (10A)

Operating force (OF): 1.2 kg max.

Pretravel (PT): 55° max.

Overtravel (OT): 35° min.

Brand: Tend, Taiwan

Condition: New

Stock: Subject to availability

Price: Available on request

Location: Brands > Tend > TZ-5105

Features

  • Fork lever lock actuator
  • Rigid die-cast switch housing.
  • Set position indicator plate for easy maintenance.
  • High mechanical strength.
  • Oil tight, waterproof and dust proof construction.




















    • Specifications - TZ-5105

    Actuation: Fork lever lock actuator

    Rated voltage: 250VAC (10A)

    Operating force (OF): 1.2 kg max.

    Pretravel (PT): 55° max.

    Overtravel (OT): 35° min.

    Housing material: Aluminium die-cast

    Operating temperature: -10 °C to +80 °C

    For more information on technical data, please see data sheet.
