T3C-107 Suntec Oil Pump, T3C107 | Combustion Controls

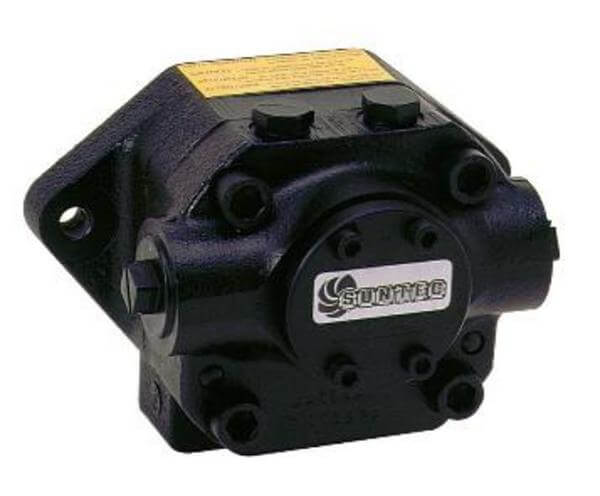

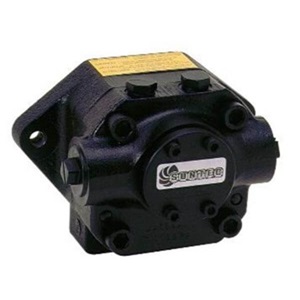

T3C-107 - Suntec Oil Pump

Type: T3C-107

Shaft rotation: Anti-clockwise (seen from shaft end)

Capacity (l/h): 2100 l/h max.

Nozzle pressure range: 40 bars max.

Oil temperature: 0 - 140°C max. in the pump

Shaft: ø 20 mm

Brand: Suntec

Condition : Unused

Stock: 1 pc (Subject to prior sale)

Price: Available on request

Location on website: Brands > Suntec > T3C-107

T3C-107

The Suntec T oil pump is specially designed for industrial heating applications sing light or heavy oils with high capacity. It is fitted with a preheater location to render cold starting easier.

Applications

Light and heavy oil.

SUNTEC recommend the use of a SUNTEC TV valve to regulate the pump pressure.

Technical Data

Shaft rotation: Anti-clockwise (seen from shaft end)

Capacity (l/h): 2100 l/h max.

Nozzle pressure range: 40 bars max.

Operating viscosity: 4 - 450 cSt

Oil temperature: 0 - 140°C max. in the pump

Shaft: ø 20 mm

Mounting: Flange mounting

Rated speed: 3600 rpm max.

Starting torque: 0,4 Nm

Weight: 8.1 kg without packing

For more information on technical data, please refer to data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
