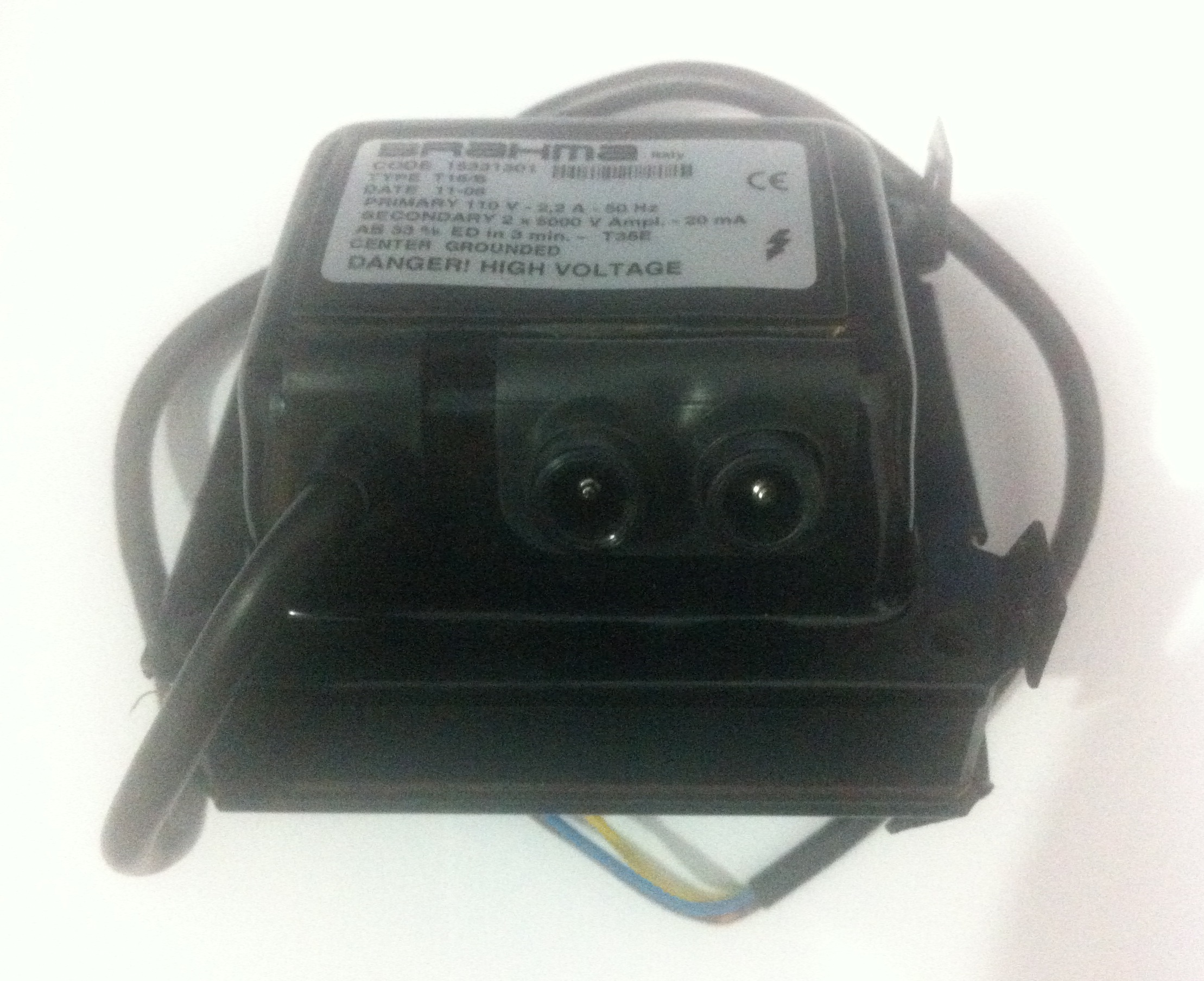

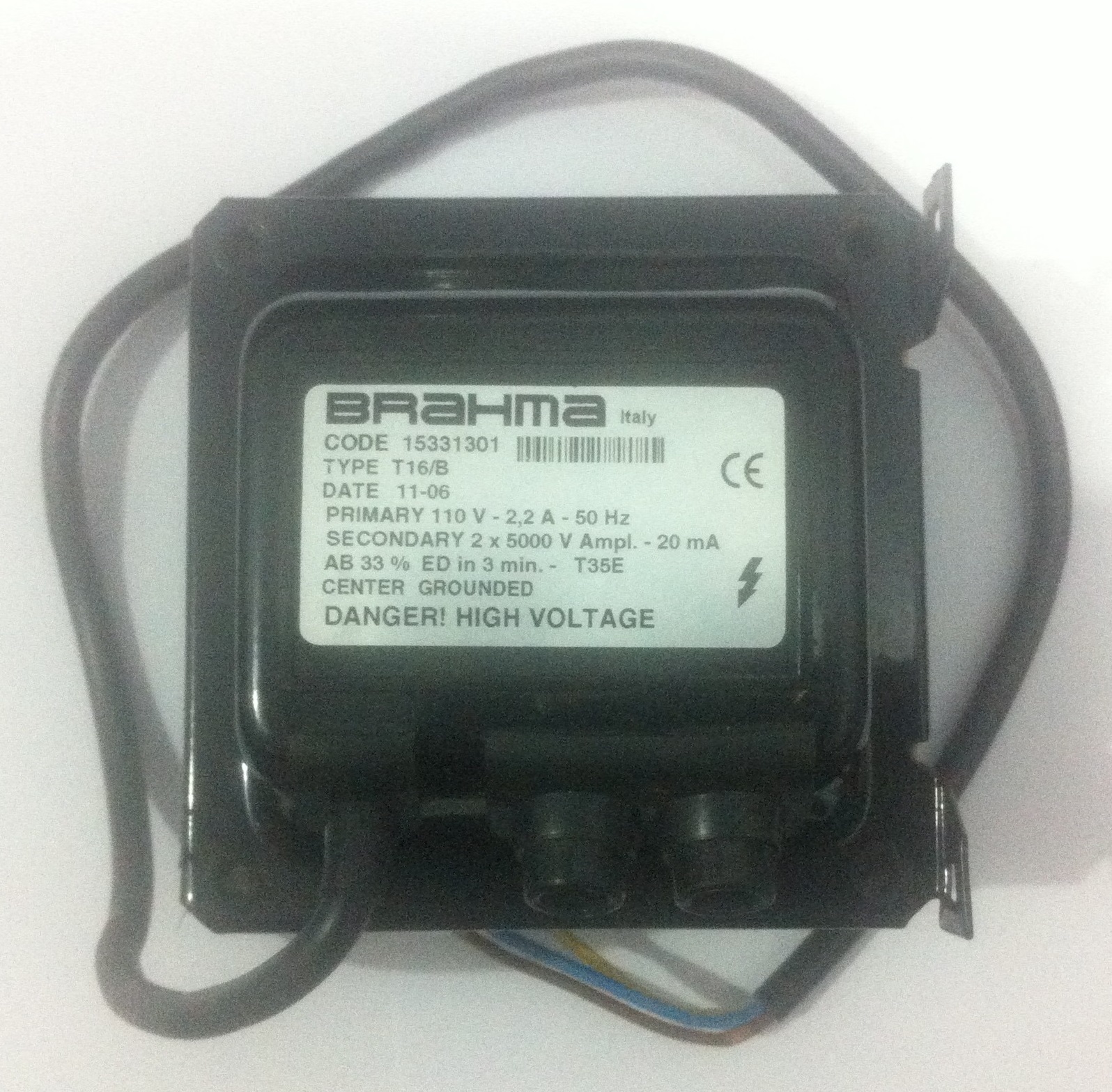

Brahma T16/B 110V Ignition Transformer

Type: T16/B

Primary: 110 V - 2,2 A - 50 Hz

Secondary: 2 x 5 kV Ampl. - 20 mA

Brand: Brahma

Origin: Italy

Stock: Subject to availability

Price: Available on request

Application

Brahma ignition transformers are suitable to equip gas forced draught burners and light or heavy oil burners in domestic and industrial applications.

Primary voltage: 110 V

Frequency: 50 Hz

Secondary voltage: 2 x 5 kV

Primary current: 2,2 A

Secondary current: 20 mA

Pin connector: Screw terminal

Spark: Intermittent

Weight: approx. 2 kg

Temperature range: -10...+60 °C

Feed cable: 55 cm

If you have any questions about this product please email us at info@combustioncontrols.pk
