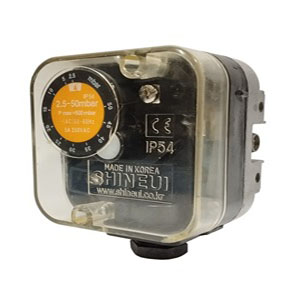

SW50A4 - SGPS50V Gas Pressure Switch

Type: SW50A4 / SGPS50V

Pressure Range: 2.5 - 50 mbar

Pmax.: 500 mbar

Control Fluid: LPG, LNG, Air

Pressure Connection: PF 1/4"

Product Category: Products > Pressure Switches > SW50A4 (listed alphabetically)

Brand: Shineui

Origin: Korea

Condition: Used

Stock: Subject to availability

Price: Available on request

Location on Website: Brands > Shineui > SW50A4

Application

This gas pressure switch is designed to monitor gas pressure and activate switch contacts accordingly. It can be used autonomously or integrated into a multifunctional gas control.

Features
  • This gas pressure switch is used to detect gas or air pressure. When the medium pressure changes, the diaphragm of the pressure receiving part detect it and operate the switch ON/OFF control.
  • Designed to monitor gas and air pressure and activate switch contacts accordingly.
  • Operates by a positive pressure, negative pressure, and differential pressure.
  • Operating pressure range of 2.5 - 50 mbar.
  • Suitable for switching a circuit on, off, or over on changes in actual pressure value relative to the set reference value.
  • The reference value (switching point) is adjusted on a setting wheel provided with a scale.



























    • Pressure range: 2.5 - 50 mbar

    Pmax.: 500 mbar

    Control fluid: LPG, LNG, Air

    Pressure connection: PF 1/4"

    Electrical ratings: 5A - 250VAC (Resistive load)

    Allowable temperature: -15...+60 °C

    Body material: Aluminium - die casting

    Diaphragm material: NBR

    Weight: Approx. 193g (excluding packing)























    If you have any questions about this product please email us at saadwaheed09@gmail.com
