STM30 Q3 51/12 34N L - STM30 Q3 51/12 34N L Schneider Berger Lahr Damper Motor Actuator | Combustion Controls - Industrial Components

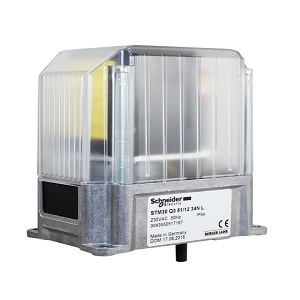

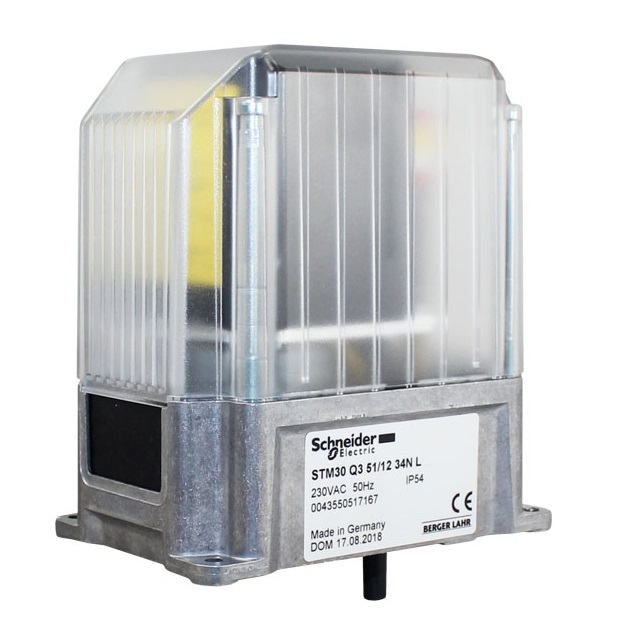

STM30 Q3 51/12 34N L - Damper Actuator

Type: STM30 Q3 51/12 34N L

Application: Controls the combustion process, etc.

Power supply: 230VAC 50Hz

Running time: 30 s for 90°

Rated torque: 10 Nm

Brand: Schneider Electric / Berger Lahr

Origin: Made in Germany

Condition: Used (Lotted)

Stock: 1-2 pcs (subject to availability)

Price: Available on request

Location: Brands > Schneider Electric > STM30 Q3 51/12 34N L

STM30 Q3 51/12 34N L - Damper Actuator

The STM actuator can be used to control the combustion process. It is powered by synchronous motor for constant speed. Cams are adjustable with very precise start and stop behaviour. Counter clockwise rotation when seen from shaft end. Its running time is 30 seconds for 90 degrees with a rated torque of 10 Nm.

Specifications

Power supply: 230VAC 50Hz

Running time: 30 s for 90°

Body size: Q3

Rated torque: 10 Nm

Static holding torque: 6.5 Nm

Sense of rotation: Left (L), counter-clockwise (seen from shaft end)

Operating temperature: 0 to + 60 °C

Product code: 0043550517167

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
