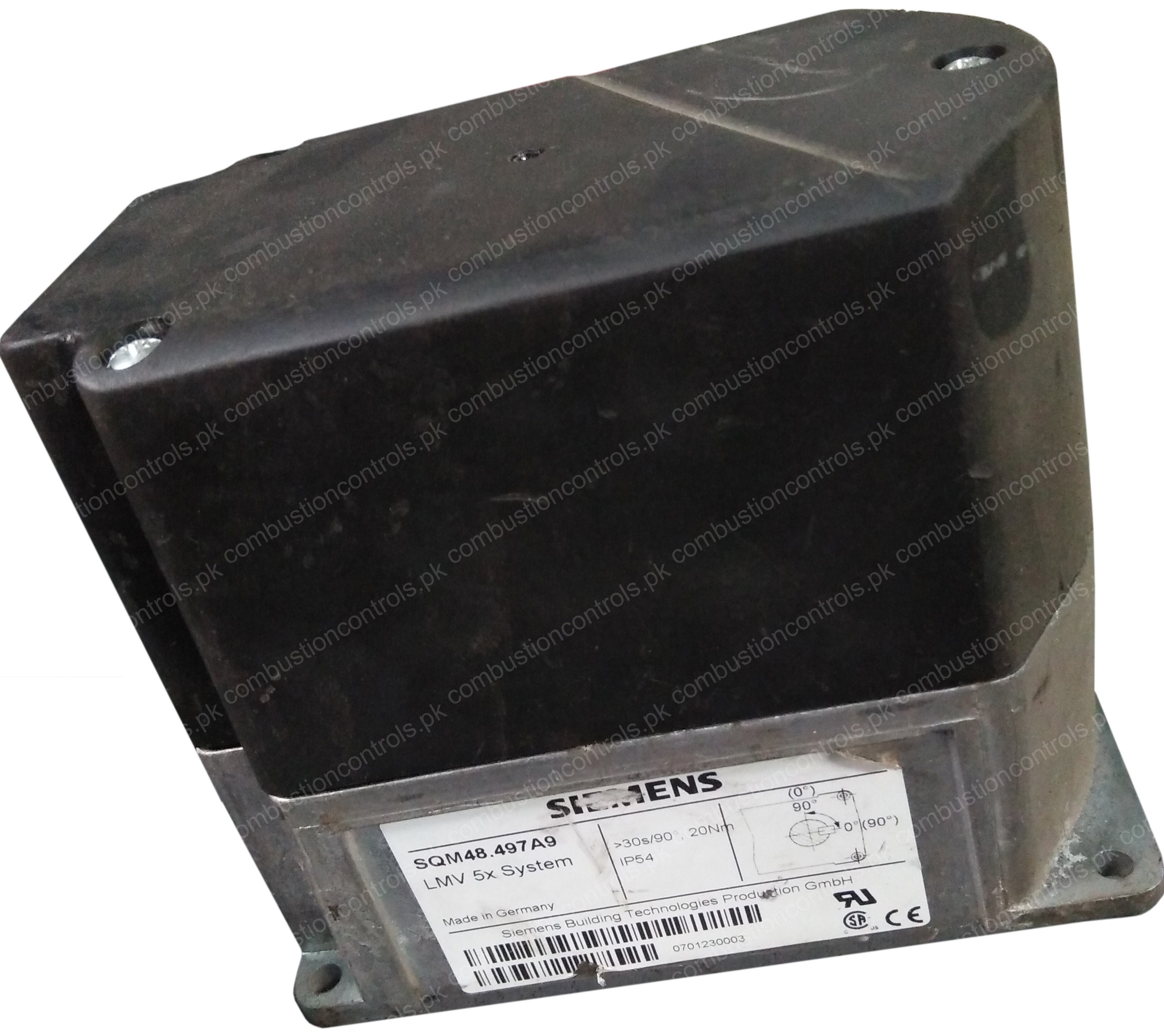

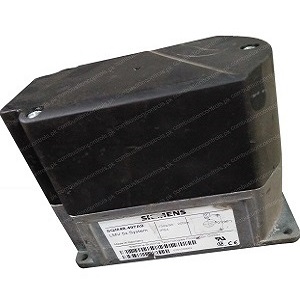

SQM48.497A9 - Siemens Actuator

Type: SQM48.497A9

Application: Air and gas dampers

Brand: Siemens, Germany

Origin: Germany

Condition: Lotted

Price: Available on request

The SQM45 / SQM48 actuators are suited for driving oil pressure controllers, butterfly valves, dampers or for use on other applications that require rotary motion.























Running time: 30s for 90°

Nominal output torque: 20 Nm

Holding torque: 20 Nm

Power consumption: 26...34 VA

Angular adjustment: Max. 90°

Mounting position: optional

Weight: Approx. 1.6 kg

For more technical information, please refer to data sheet.




















If you have any questions about this product please email us at saadwaheed09@gmail.com
