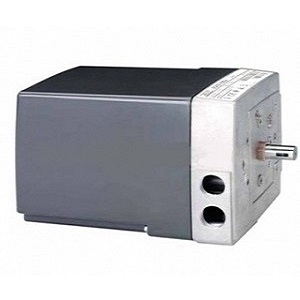

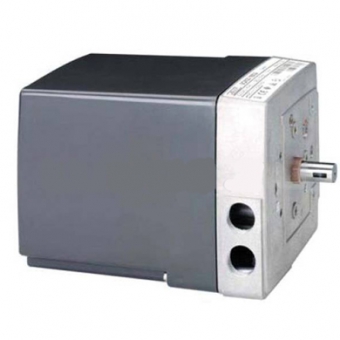

SQM11.16502 - Serie 03 Siemens Actuator

Type: SQM11.16502 (Serie 03)

Voltage: 220V~ 50/60Hz

Direction of rotation: Clockwise (when facing drive shaft)

Nominal torque: 10 Nm

Running time: 42s

Angular rotation: 130°

Diameter of drive shaft: 10 mm

Potentiometer: ASZ... (not included)

Brand: Siemens

Origin: Germany

Condition: Used (pictures available on request)

Qty available: 1 pc (subject to availability)

Price: Available on request

The reversible electromotoric actuators of the SQM... range are for use in connection with controllers or switching devices equipped with changeover contacts.

- Nominal torque of 10 Nm

- 42s running time

- Counterclockwise rotation























Voltage: AC 220...240 V 50/60Hz

Running time: 42s

Angular rotation: 130°

Running time for 90°: 29s

Wiring diagram no.: 1

Direction of rotation: Clockwise (when facing the drive shaft, with control voltage applied to terminal 1)

Number of auxiliary switches: 5

Nominal torque: 10 Nm

Starting torque: 15 Nm

Holding torque: 7 Nm

Diameter of drive shaft: 10 mm

Power consumption: 9 VA

Mounting position: optional

Degree of protection: IP54

Weight: Approx. 1.7 kg

Temperature range (operation): -20...+60 °C

Potentiometer ASZ...: Not included

For more technical information, please refer to data sheet.




















If you have any questions about this product please email us at saadwaheed09@gmail.com
