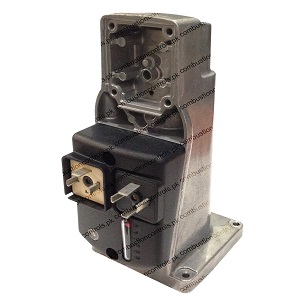

SKP15.001E2 - Actuator for Gas Valves

Type: SKP15.001E2

Use: Works as a safety shut off valve with VG... valves

Mains voltage: 220-240V~ 50-60Hz

Power consumption: 13.5 VA max.

Brand: Siemens, Germany

Price: Available on request

The electrohydraulic actuator SKP15... together with VG... valves works exclusively as a safety shutoff valve (Open / Closed). They are used primarily on gas-fired combustion plant. The actuators open slowly and close rapidly.























Mains voltage: 220-240V~ 50-60Hz

Power consumption: 13.5 VA max.

Closing time: < 0.8 s (at shutdown)

Opening time for full stroke: 6...13 s (depending on valve nominal size)

Weight: Approx. 1.1 kg

Operation temperature range: -10...+60 °C




















If you have any questions about this product please email us at info@combustioncontrols.pk or saadwaheed09@gmail.com
