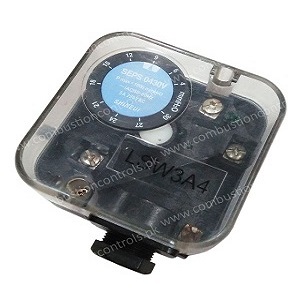

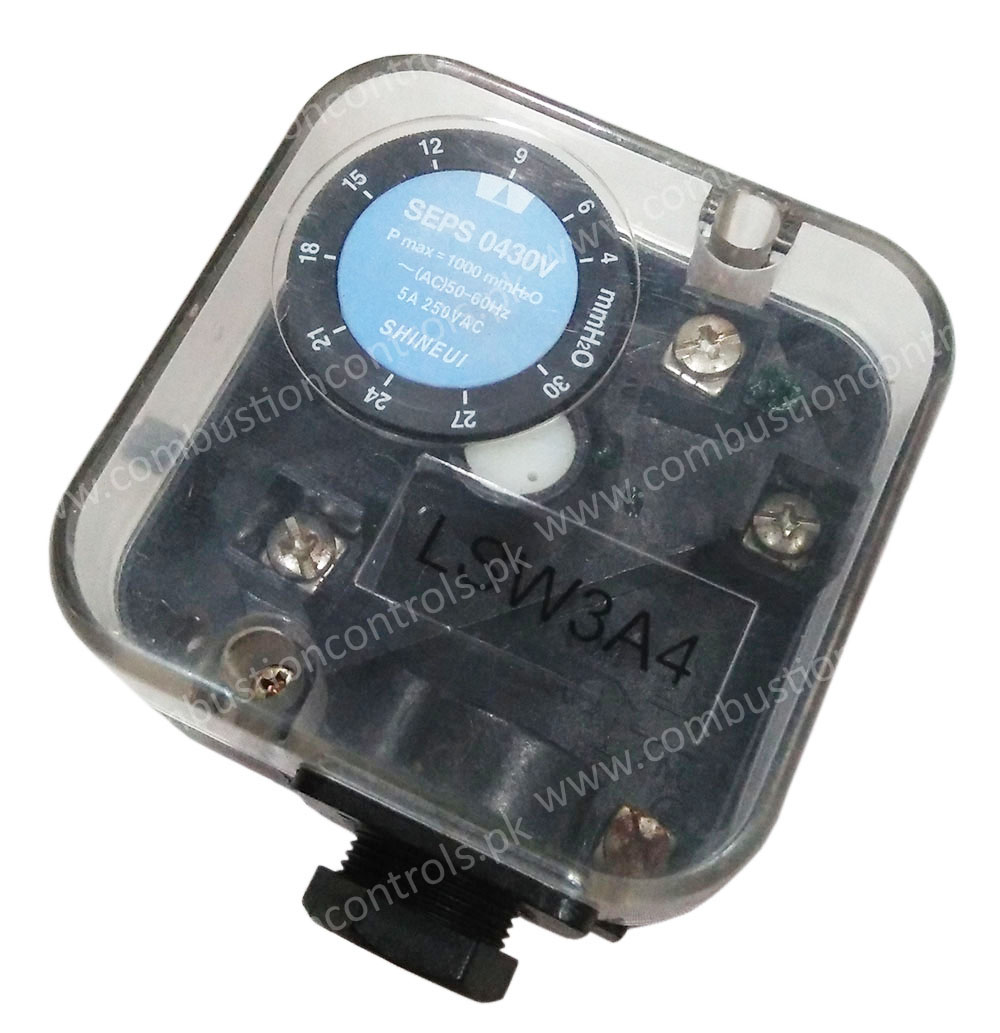

SEPS 0430V - Air Pressure Switch

Type: SEPS 0430V

Pressure range: 4 - 30 mmH₂O (0.4 - 3 mbar)

Pmax.: 1000 mmH₂O (100 mbar)

Pressure connection: PF 1/4" (positive)

Brand: Shineui

Origin: Korea

Condition: Used

Stock: Subject to availability

Price: Available on request

SEPS 0430V - Features
  • Air pressure switch for use on oil, gas, and dual-fuel burners.
  • Designed to monitor air pressure and activate switch contacts accordingly.
  • Operates by a positive pressure, negative pressure, and differential pressure.
  • Operating pressure range of 4 - 30 mmH₂O (0.4 - 3 mbar).
  • Suitable for switching a circuit on, off, or over on changes in actual pressure value relative to the set reference value.
  • The reference value (switching point) is adjusted on a setting wheel provided with a scale.
  • The test nipple is integrated in metal housing as standard.



























    • Pressure range: 4 - 30 mmH₂O (0.4 - 3 mbar)

    Pmax.: 1000 mmH₂O (100 mbar)

    Sensing fluid: Air

    Pressure connection: PF 1/4" (positive)

    Electrical ratings: 5A - 250VAC (Resistive load)

    Allowable temperature: -20...+60 °C

    Body material: Aluminium - die casting

    Diaphragm material: Silicon

    Weight: Approx. 193g























    If you have any questions about this product please email us at saadwaheed09@gmail.com
