Overview

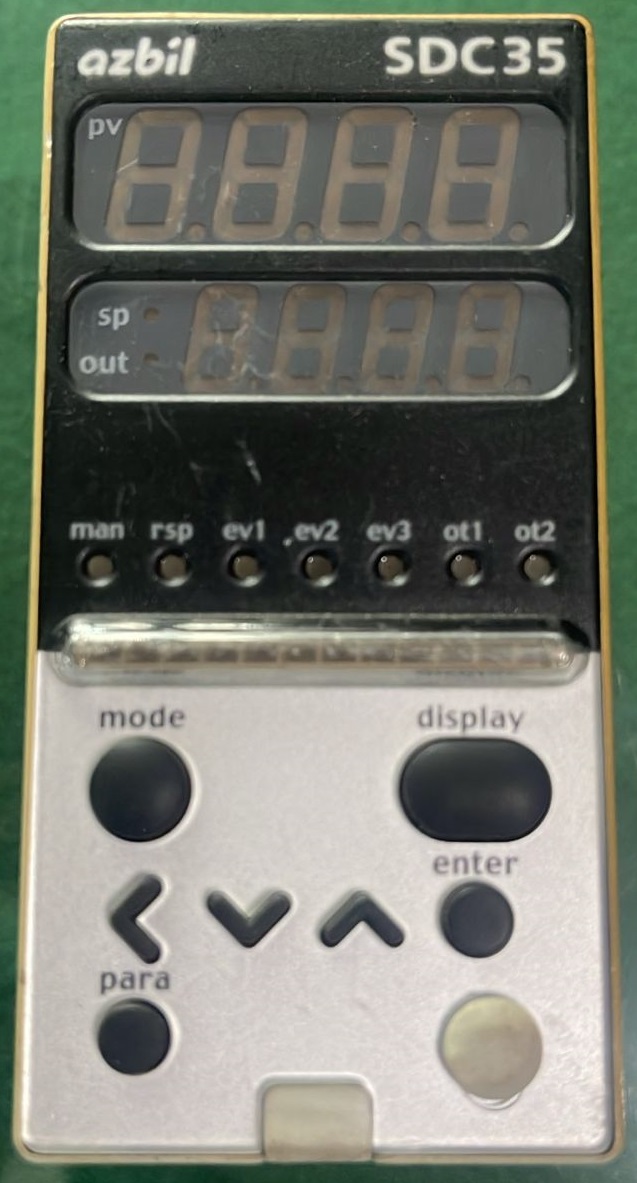

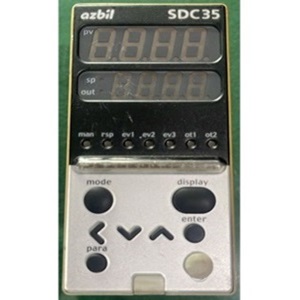

The DigitroniK SDC35/36 is a digital indicating controller featuring multi-range inputs and PID control system using new algorithms "RationaLOOP" and "Just-FiTTER". Up to two control output points (this number of points may vary depending on the model) can be used, which are selectable from the relay contact, voltage pulse, and current. The smart loader package ensures easy setting operation and monitoring.
This controller is compliant to the IEC directives and the CE marking.
Features
Space saving design with a depth of 65mm. The mask of the front panel is also only 5mm thick.
High accuracy of ±0.1 %FS and sampling cycle of 0.1 seconds.
Multi-range inputs are available for selection, where the input type can be freely changed among thermocouple, RTD, current, and voltage.
The control method can be selected from any of the ON/OFF control and PID control using "RationaLOOP" + "Just-FiTTER".
The heat/cool control can be achieved using two control output points and event outputs.
The RS-485 communication function is provided as an optional function.
The control output types available for selection are relay, voltage pulse, current, and continuous voltage outputs which can be combined.
Event 3 points or 2 points (independent contact), CT input 2 points, DI 4 points, and RS-485 can be selected in combination.
The smart loader package (SLP-C35) can be used.
Power supply: 100-240VAC 50/60 Hz
Input type: Universal input
Input type: Multi-range of inputs - Thermocouple, RTD, DC current and DC voltage
Input sampling time: 100ms
Control output: Current
Current output: 0 to 20 mAdc or 4 to 20 mA
Number of inputs: Max. 4 points
Power consumption: Max. 12 VA
Ambient temperature: 0...+50 °C
Weight: Approx 250 g
For more information on technical data, please see data sheet.
If you have any questions about this product please email us at saadwaheed09@gmail.com
