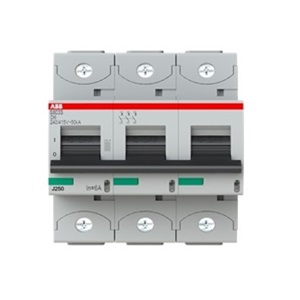

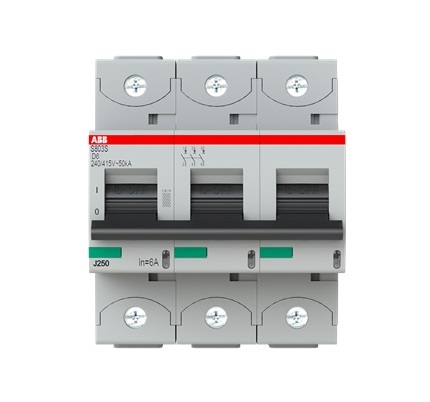

S803S-D6
The S803S-D6 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-D6 complies with IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-D6 more comfortable. Due to the fast arc extinction of S803S-D6 your application will be secured.
3-pole High Performance Circuit breaker with D-Characteristic.
With cage terminal and a rated current of 6 A.
Maximum breaking capacity of 50kA at 240/415V.
Can be used for voltages up to 400/690V and in DC as well.
Has thermal tripping mechanism for overload protection.
Has electromechanic tripping mechanism for short circuit protection.
Complies with IEC/EN 60947-2.
Can be used for residential, commercial and industrial applications.
Can be used worldwide due to numerous approvals.
Number of Poles: 3
Tripping Characteristic: D
Input Voltage Type: AC/DC
Rated Current: 6 A
Rated Operational Voltage: 400/690 V AC; 375 V DC
Power Loss: at Rated Operating Conditions per Pole 1.7 W
Rated Insulation Voltage: 690 V AC
Rated Frequency: 50 / 60 Hz
Max. Breaking Capacity: 50kA at 240/415V
Net Weight: 0.74 kg
For more information on technical data, please see data sheet.
