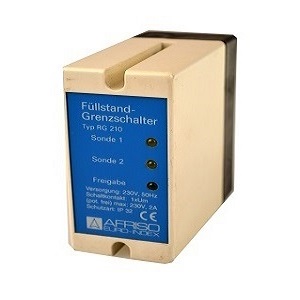

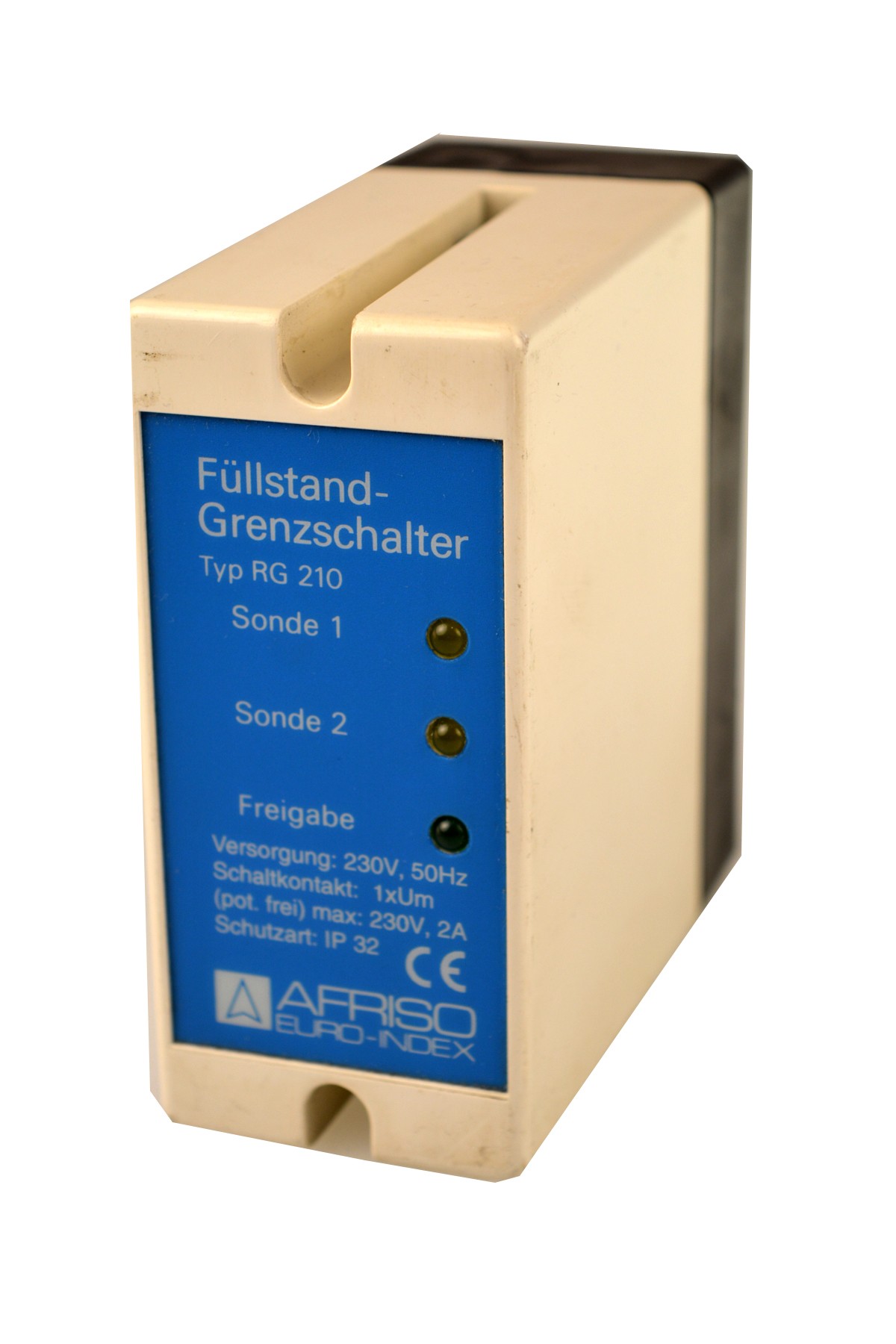

RG 210 - Thermistor Level Controller

Type: RG 210

Probe: PTC thermistor probe, types 150 or 937

Supply voltage: AC 230 V

Power input: 12 VA

Brand: Afriso

Origin: Germany

Condition: Used

Plug-in base: Ordered separately

Price: Available on request

Application

For use in electrically conductive and non-conductive liquids which are not viscous or adhesive: fuel oil, diesel fuel, emulsions, water, and media which are not corrosive.

Description

PTC thermistor type level controllerwith selectable functions:

- Level switch (1 probe)

- Level control for filling (2 probes)

- Level control for emptying (2 probes)

Level switch with 1 probe:

The relay switches in case of contact or loss of contact with the liquid. When the switch point is set, it must be observed that the PTC thermistor requires approx. 8 seconds to heat up depending on the ambient temperature.

Level control for filling with 2 probes:

Set internal switch to "fill". The relay energises after the min. probe has heated up. Relay de-energises when the max. probe comes in contact with the liquid.

Level control for emptying with 2 probes:

Set internal switch to "empty". Relay energises when max. probe has contact with the liquid. Relay de-energises when the min. probe loses contact with the liquid and heats up.

Operating temperature range (medium): -25°C to +55°C

Operating temperature range (ambient): -10°C to +55°C

Probe: PTC thermistor probe, types 150 or 937 (process connection G1)

Supply voltage: AC 230 V

Power input: 12 VA

Relay contact (output): 1 voltage-free changeover contact

If you have any questions about this product please email us at saadwaheed09@gmail.com
