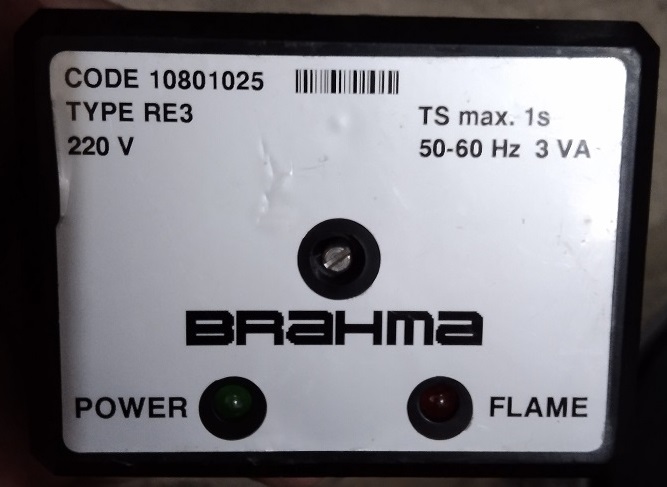

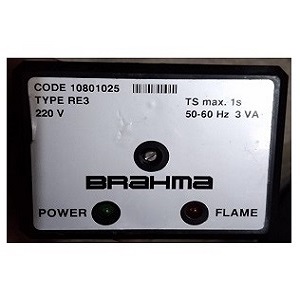

RE3 (10801025) - Brahma Flame Relay

Type: RE3

Code: 10801025

Photocells (Brahma): UV1, UV2

Power Supply: 220 VAC 50-60 Hz 3VA

Flame Detection via: UV or Ionization probe

Purpose: To verify the presence of flame on gas burners

Product Category: Flame Safeguards

Brand: Brahma

Stock: Subject to availability

Price: Available on request

Plug-in base: Ordered separatley

RE3 Flame Relay

The RE3 control is suitable to verify the presence of flame on gas burners. In fact it can use either a UV sensor or ionization probe to exploit the flame rectification effect.
























Power supply: 220 VAC 50-60 Hz

Power consumption in running: 3 VA

Reaction time: < 1 s

Brahma UV sensors: UV1, UV2

Operating temperature: 0...+60 °C

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
