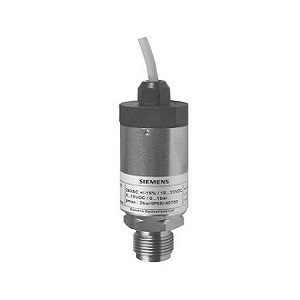

QBE2002-P5 - Siemens Pressure Sensor

Type: QBE2002-P5

Applicable fluids: Liquid and gaseous media

Pressure range: 0...5 bar

Output signal: DC 0...10 V

Supply voltage: AC 24 V or DC 18...33 V

Products category: Pressure Sensors

Brand: Siemens

Stock: 1 piece (subject to availability)

Price: Available on request

Product location on website: Products > Pressure Sensors > QBE2002-P5

QBE2002-P5 - Siemens Pressure Sensor for liquid and gaseous media
  • Piezo-resistive measuring system
  • DC 0...10 V output signal
  • Measurement unaffected by changes in temperature
  • High temperature stability
  • No mechanical aging or creepage
  • External thread G1/2"
  • Excellent EMC characteristics

    • The pressure sensors operate on the piezo-resistive measuring principle. The ceramics diaphragm (thick-film hybrid technology) acquires the pressure through direct contact with the medium. The measurement is converted electronically into a linear output signal of DC 0...10 V or DC 4...20 mA.




























    QBE2002-P5

    Applicable fluids: Liquid and gaseous media

    Pressure range: 0...5 bar

    Output signal: DC 0...10 V

    Supply voltage: AC 24 V or DC 18...33 V

    Media temperature: -40...+80 °C

    For more information on technical data, please see data sheet.
