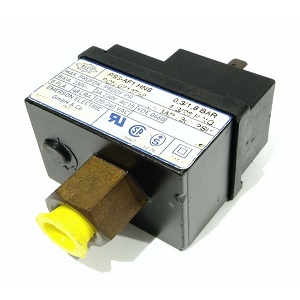

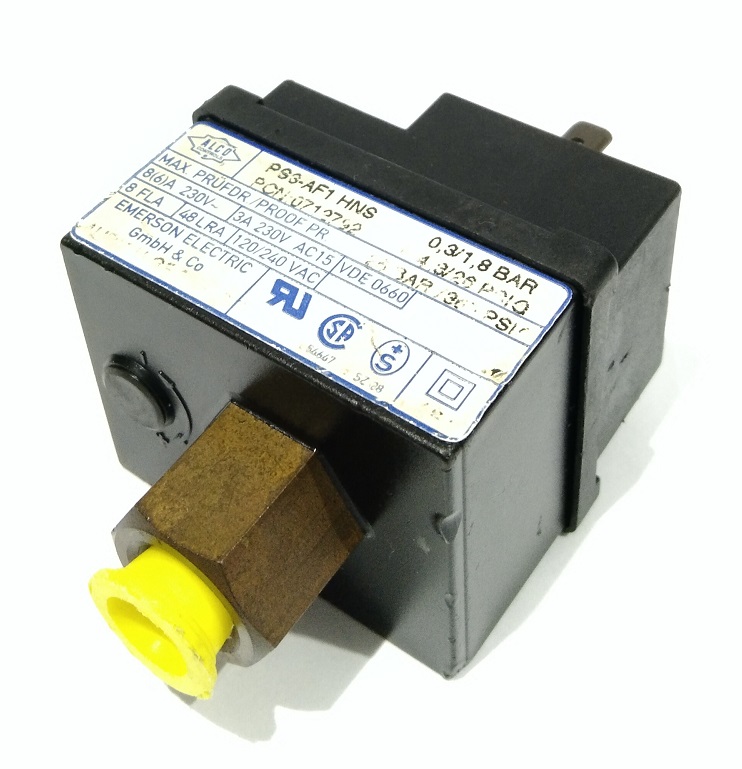

PS3-AF1 HNS - Alco Pressure Switch

Type: PS3-AF1 HNS

PCN: 0712792

Set pressure (on): 0.3 bar

Set pressure (off): 1.8 bar

Leakage test pressure: 25 bar

Reset: Auto

Pressure connection: 7/16"-20 UNF internal thread with Schrader opener

Product category: Pressure Switches (listed alphabetically)

Brand: Alco Controls

Condition: Unused

Availability: 3 - 4 pieces

Price: Available on request

Location: Brands > Alco Controls > PS3-AF1 HNS

PS3 are equipped with a SPDT snap action contact, switching from 1-2 to 1-4 on rising pressure and from 1-4 to 1-2 on falling presure. The PS3 is factory preset according to specifications and is not adjustable.

Features
  • PS3: Compact fixed setting pressure switch
  • Low pressure switch
  • Automatic high/low pressure reset
  • SPDT snap action contacts
  • Maximum medium temperature +70 °C
































  • Set pressure (on): 0.3 bar

    Set pressure (off): 1.8 bar

    Leakage test pressure: 25 bar

    Reset: Auto

    Pressure connection: 7/16"-20 UNF internal thread with Schrader opener

    Medium temperature (max.): +70 °C

    For more information on technical data, please see data sheet.
