P233A-4-AA - P233A-4-AAC 0.5 - 4 mbar Johnson Controls Air Pressure Switch | Combustion Controls - Industrial Instruments

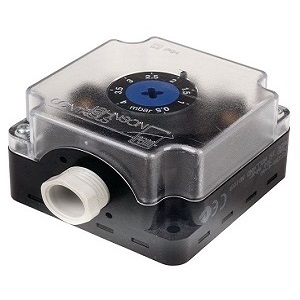

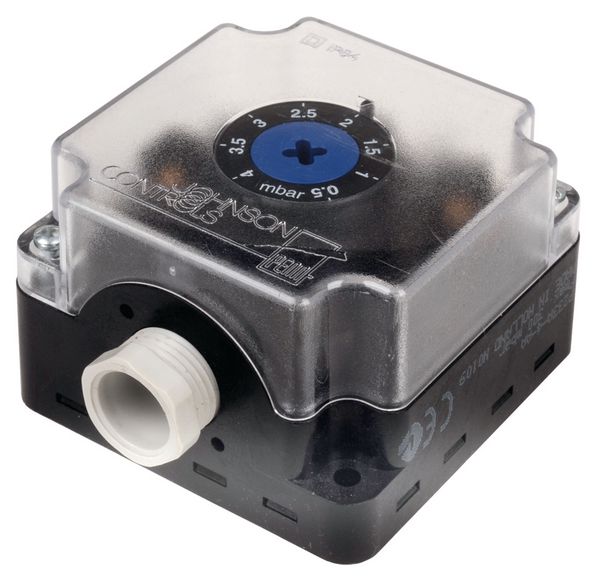

P233A-4-AA - Air Pressure Switch

Type: P233A-4-AA

Setpoint range: 0.5 to 4 mbar

Differential (fixed): ≤ 0.25 mbar

Max. continuous overpressure: 300 mbar

Brand: Johnson Controls

Condition: New

Availability: In stock

Price: Available on request

Location: Brands > Johnson Controls > P233A-4-AA

Applications

This switch senses a change in the (differential) pressure (either velocity pressure or pressure drop across a restriction) as the airflow changes. The (differential) pressure is applied to the two sides of the diaphragm in the control. The spring-loaded diaphragm moves and actuates the switch. The series P233A/F can also be used to detect small positive gauge pressure by using only the high-pressure connection and leaving the low-pressure port open. Or to detect a vacuum by using only the low pressure connection and leaving the high-pressure port open to ambient pressure.

Setpoint range: 0.5 to 4 mbar

Differential (fixed): ≤ 0.25 mbar

Sample media: Air, non-inflammable gases, non-aggressive gases

Max. continuous overpressure: 300 mbar

Operating temperature: -15...+60 °C

Protection class: IP54

Weight: 115 g

For more information on technical data, please see data sheet.
