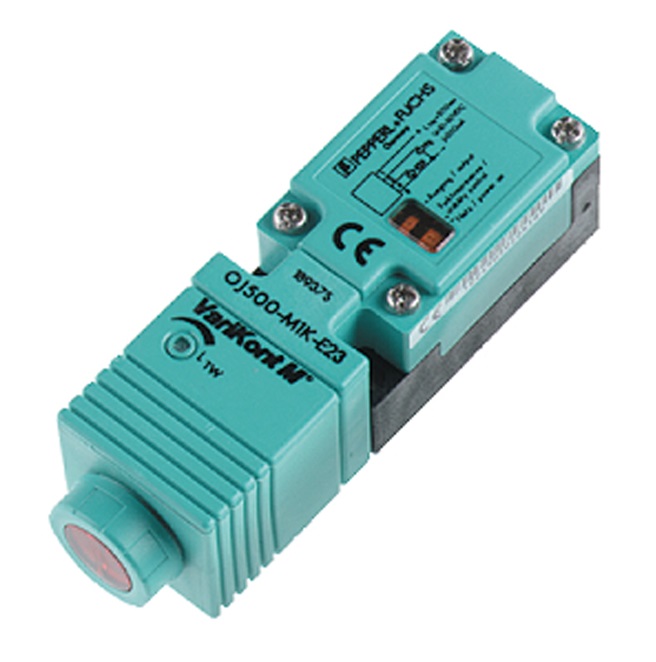

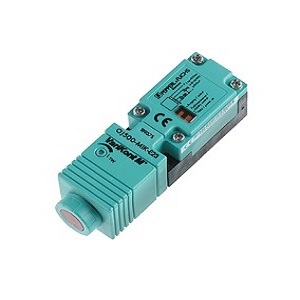

OJ500-M1K-E23 - Fiber Optic Sensor

Type: OJ500-M1K-E23

Sensor Range: up to 100 mm

Detection Range: up to 600 mm

Operating Voltage: 10 - 30 VDC

Signal Output: 1 PNP

Switching Current: ≤ 200 mA

Brand: Pepperl+Fuchs

Stock: 3 pieces (subject to prior availability)

Price: Available on request

Product Location: Brands > Pepperl+Fuchs > OJ500-M1K-E23 (listed alphabetically)

OJ500-M1K-E23 - Fiber Optic Sensor for glas fiber optics
  • Light-on/dark-on parameterisable
  • Adjustable sensor head
  • Sensor with sensitivity adjuster
  • Scratch resistant mineral glass lens

    • Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets.




























    OJ500-M1K-E23

    Sensor range: up to 100 mm

    Detection range: up to 600 mm

    Operating voltage: 10 - 30 VDC

    Signal output: 1 PNP

    Switching current: ≤ 200 mA

    Product ID: 18937S

    Control elements: Sensing range adjuster

    Operation indicator: LED, green

    Switching state indicator: LED, yellow

    Short-circuit protection: Yes

    Ambient temperature: -25...+70 °C

    Degree of protection: IP67

    Housing material: PBT

    Optical face: Scratch resistant mineral glass lens

    Weight: 100g

    For more information on technical data, please see data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
