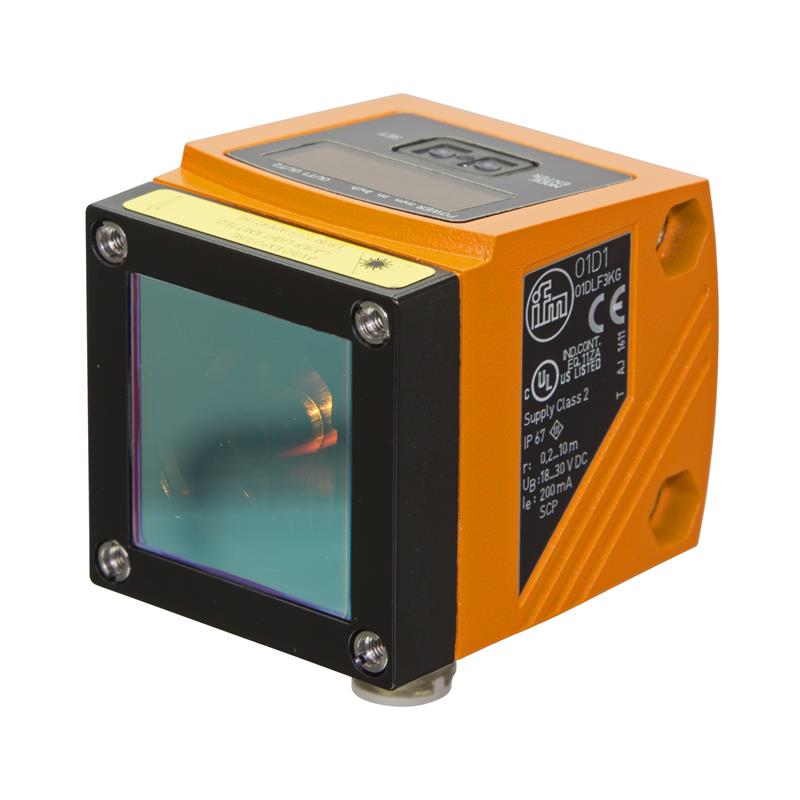

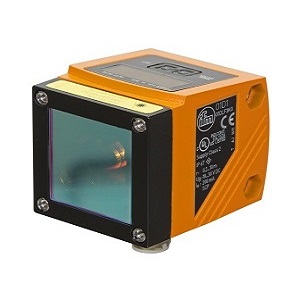

O1D100 O1DLF3KG - Laser Distance Sensor

Type: O1D100 O1DLF3KG

Measuring range: 0.2...10 m

Operating voltage: 18...30 V DC

Output function: NO/NC programmable; 4-20 mA / 0-10 V

Item availability: Sold-out

Brand: Ifm Electronic

Origin: Germany

Condition: New

Price: Available on request

Features
  • Laser distance measurement
  • Visible laser light, protection class 2 laser
  • OUT1: NO/NC programmable
  • OUT2: NO/NC programmable or analogue (4-20 mA / 0-10 V scalable)
  • IO-Link
  • DC PNP
  • Range: 0.2-10 m
  • 4-digit alphanumeric display
  • Protection rating: IP67
  • M12 connector

  • O1D100 - O1DLF3KG

    The laser distance sensor O1D100 from ifm electronic has a background suppression > 10-19 m and two programmable switching outputs. The second output can be used alternatively as an analogue output for distance measurement. The laser distance sensor O1D100 has a range of 0.2-10 m. The detection of the object and background is configured via the Teach function. The visible laser light allows for easy alignment. The distance to the object is easily readable on the 4-digit alphanumeric display with the laser distance sensor O1D100. Due to the robust and compact metal housing, the high protection rating of IP67 as well as the precise object detection, the laser distance sensor O1D100 with M12 plug connection is ideally suited for position control in material feed systems and presence monitoring of components from a large distance.




























    Operating principle: Distance sensor

    Range max.: 10 m

    Type: Rectangular

    Operating distance: 0.2...10 m

    Type of light: Laser light

    Transmission type: COM 2 (38.4 kBaud)

    Wavelength: 650 nm

    Light spot: 15 (range 10 m) mm

    Adjustment: Push buttons

    Function display: LED indication (4-digit)


    Operating voltage min.: 18 V

    Operating voltage max.: 30 V

    Type of voltage: DC

    Output: PNP

    Output function: NO/NC programmable; 4-20 mA / 0-10 V

    Output current max.: 200 mA

    Short circuit protection: Yes

    Reverse polarity protection: Yes


    Size: 42 x 45 mm

    Total length: 59 mm

    Connection: M12 connector (4 pins)

    Housing material: Diecast zinc

    Material of the lens: Glass


    Ambient temperature: -10...+60 °C

    Protection rating: IP67

    Application: Factory automation


    For more information on technical data, please see data sheet.
