Inductive Sensors
Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets.
NAMUR Sensors
NAMUR sensors are two-wire sensors that represent the switch state via specific current values as defined in the EN 60947-5-6 standard. NAMUR sensors are usually connected to isolated switch amplifiers that interpret the current values of the NAMUR sensor and convert them into discrete switching outputs. Together with a suitable isolated switch amplifier, NAMUR sensors form an intrinsically safe circuit for use in explosion-hazardous areas. Alongside the switching output control, the isolated switch amplifier provides short-circuit and lead breakage detection.
Two-wire NAMUR proximity sensors are characterized by the fact that their current consumption is changed by the presence of a metal object within the sensing zone.

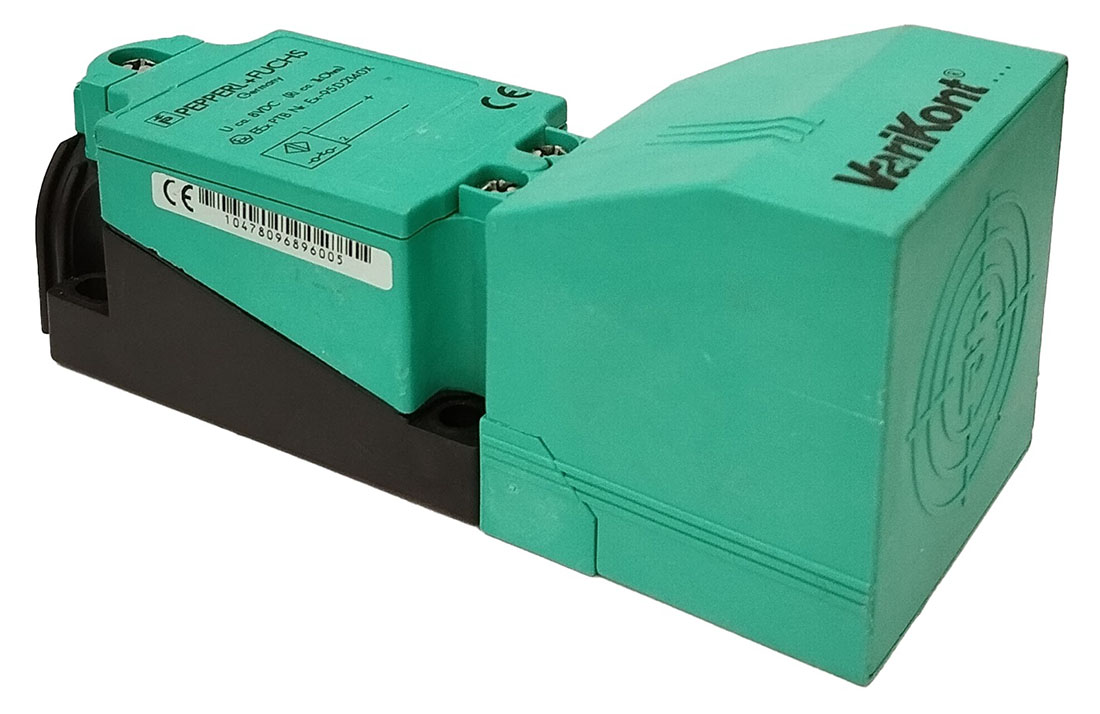

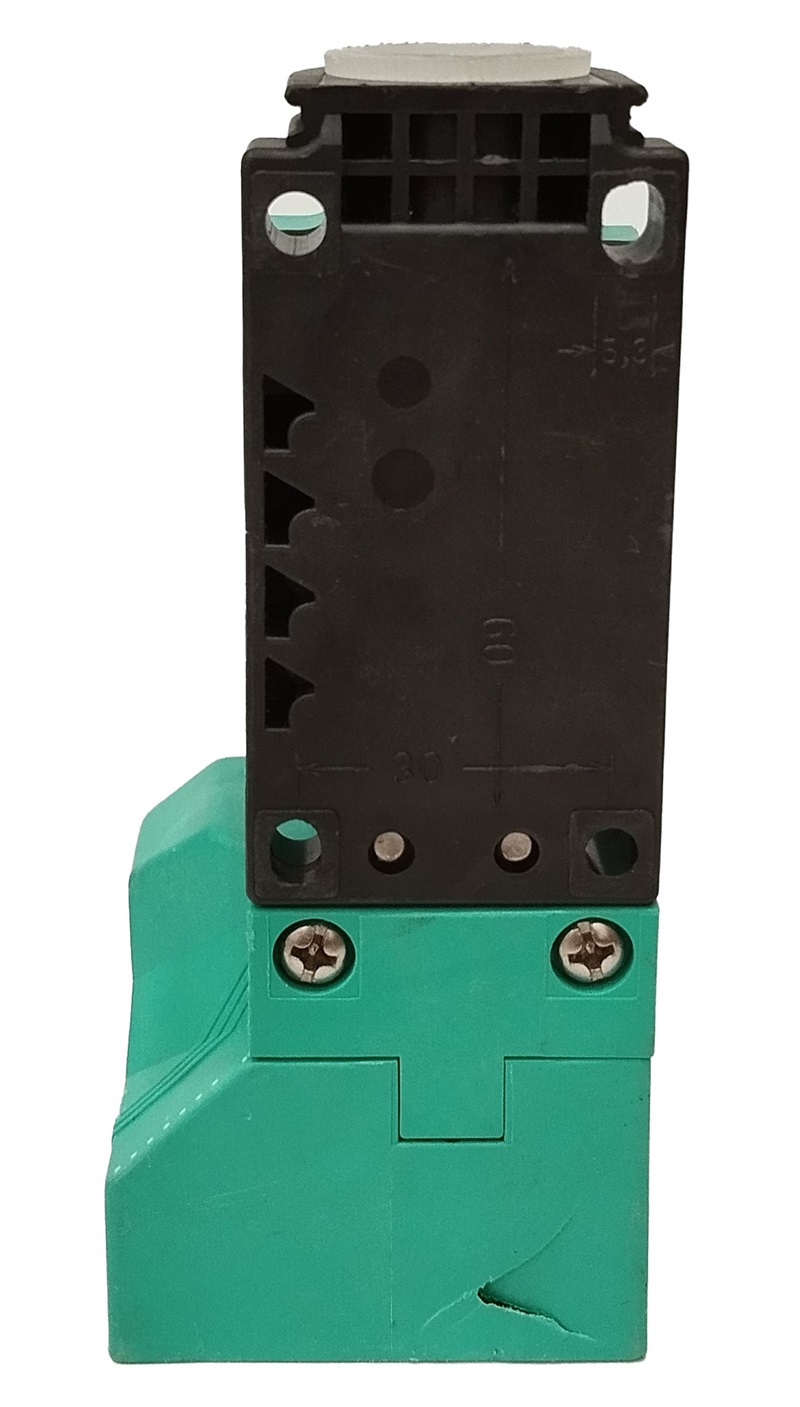

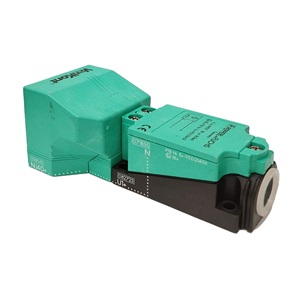

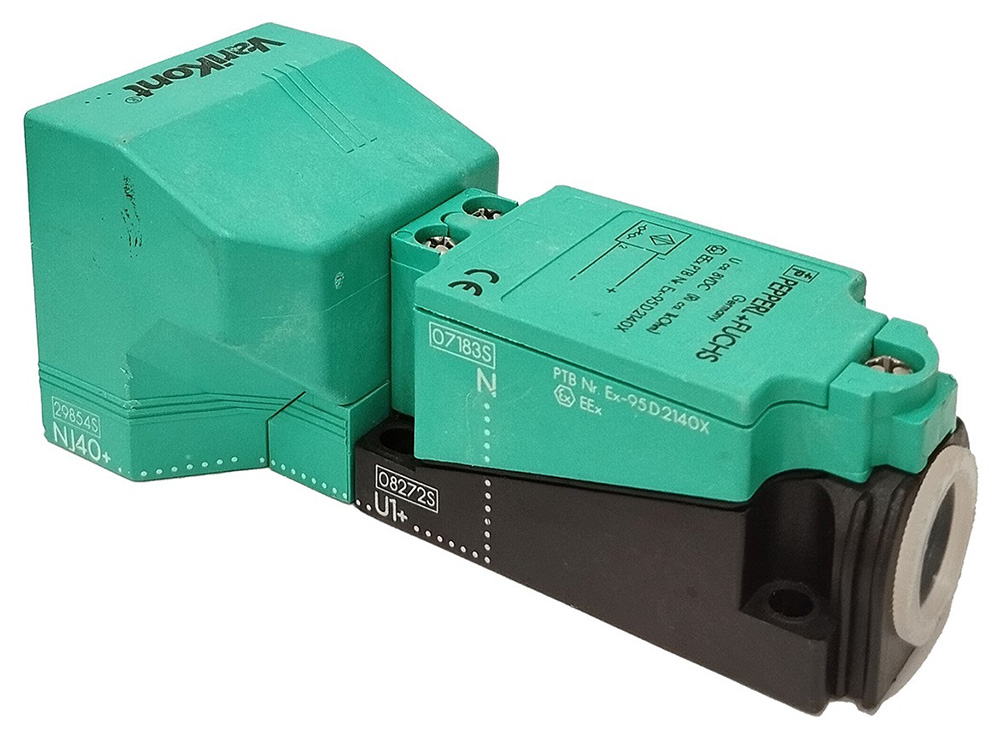

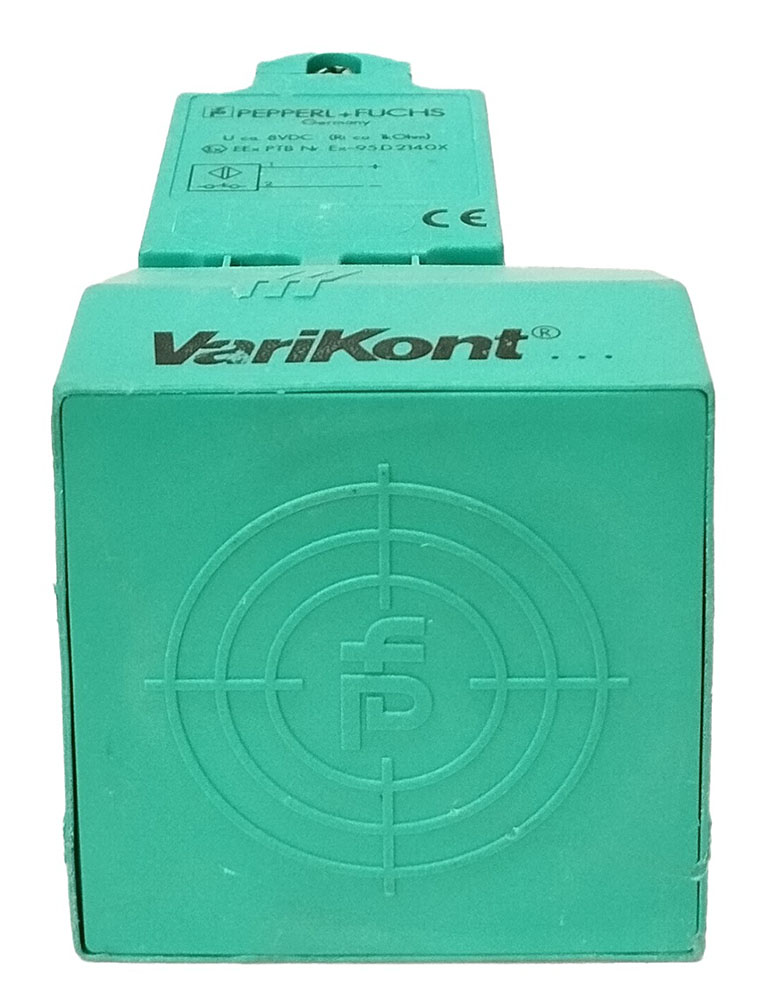

Features (NJ40+U1+N):
Comfort series
Normally closed switching function
Rated operating distance 40 mm
Non-flush installation 2-wire NAMUR sensor
Switching function: Normally Closed (NC)
Output type: NAMUR
Rated operating distance (Sn): 40 mm
Installation: Non-flush
Assured operating distance (Sa): 0...32.4 mm
Output type: 2-wire
Nominal voltage: 8.2 V DC
Switching frequency: 0...80 Hz
Ambient temperature: -25...+100 °C
Connection type: Screw terminals
Housing material: PBT
Sensing face: PBT
Degree of protection: IP68
For more information on technical data, please see data sheet.
