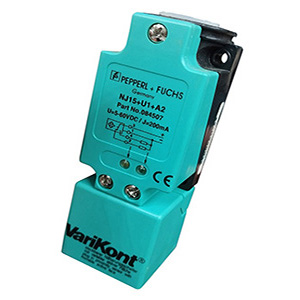

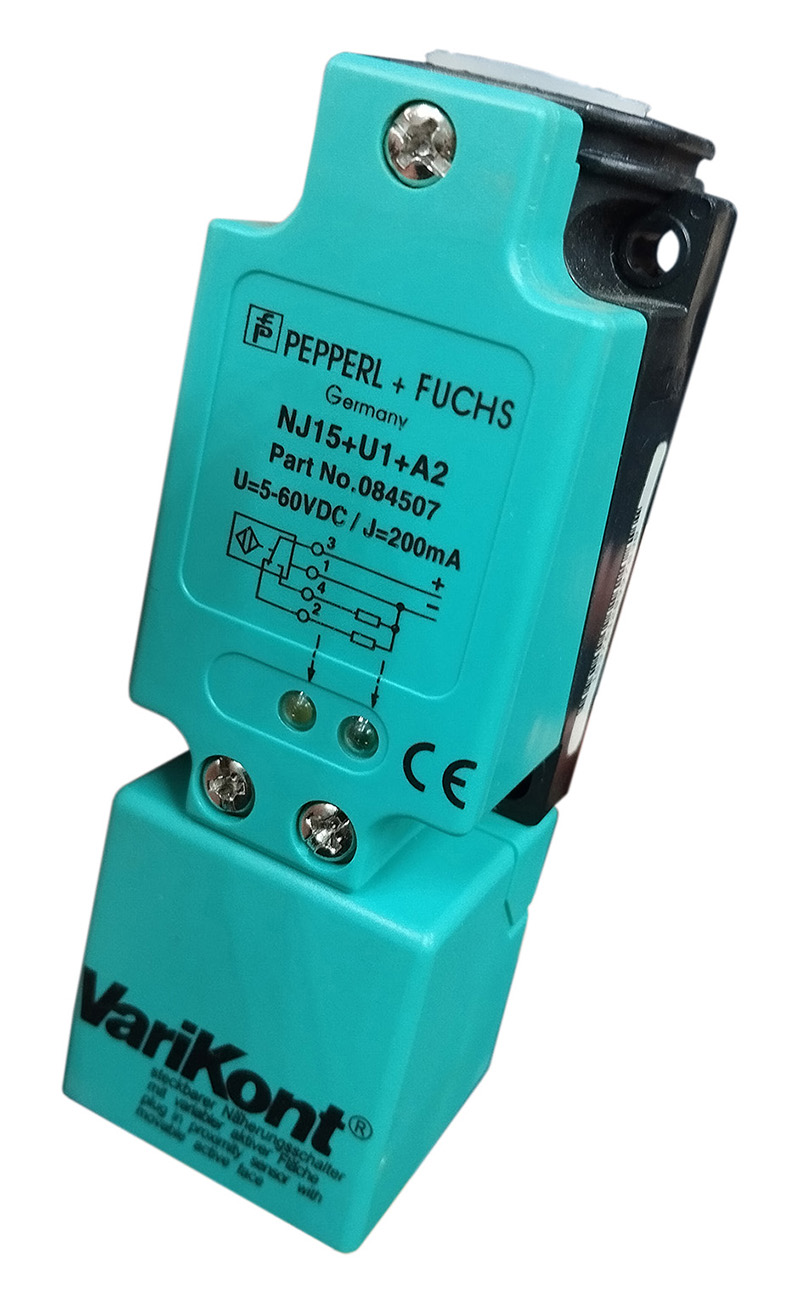

NJ15+U1+A2 (084507) - Inductive Sensor

Type: NJ15+U1+A2

Part no.: 084507

Switching function: Complementary

Output type: PNP

Rated operating distance: 15 mm

Operating voltage: 10 ... 60 V DC

Operating current: 0...200 mA

Product category: Inductive Sensors (listed alphabetically)

Brand: Pepperl+Fuchs

Origin: Made in Germany

Condition: New

Stock: Subject to availability

Price: Available on request

Location: Brands > Pepperl+Fuchs > NJ15+U1+A2

Note: Product picture listed is original stock picture.

Inductive Sensors

Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets.

Features:
  • Comfort series
  • 15 mm flush
  • Reverse polarity protection
  • Pulsing short-circuit protection
  • Green LED operating voltage indicator



























    • Switching function: Complementary

    Output type: PNP

    Rated operating distance (Sn): 15 mm

    Installation: Flush

    Output polarity: DC

    Assured operating distance: 0...12.15 mm

    Output type: 4-wire


    Operating voltage: 10...60 V

    Switching frequency: 0...150 Hz

    Short-circuit protection: pulsing

    Operating current: 0...200 mA

    Operating voltage indicator: LED, green

    Switching state indicator: LED, yellow


    Ambient temperature: -25...+70 °C

    Connection type: screw terminals

    Sensing face: PBT


    Degree of protection: IP68

    Weight: 345.5g


    For more information on technical data, please see data sheet.
