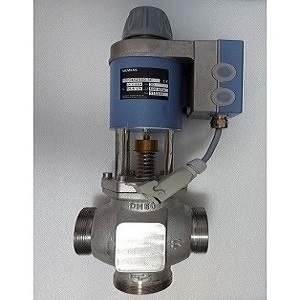

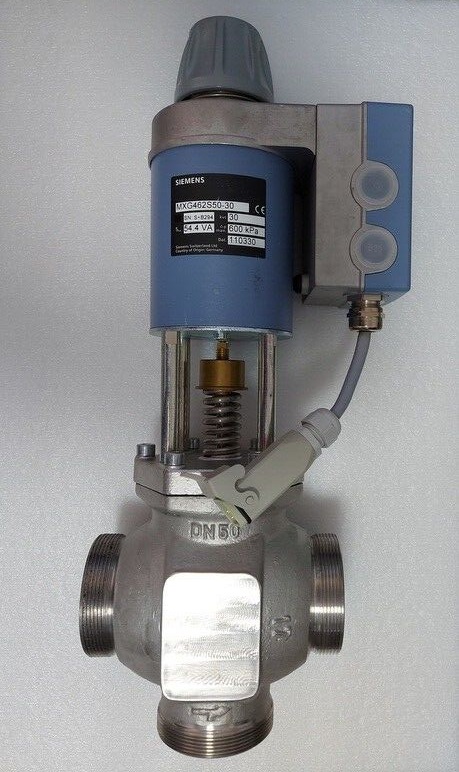

MXG462S50-30 - Modulating Control Valve

Description: Modulating control valve, with magnetic actuator

Type: MXG462S50-30

Nominal size: DN50

Connection thread: G 2¾" B

Operating voltage: AC 24 V / DC 20...30 V

Positioning signal: DC 0/2...10V or DC 0/4...20 mA

Flow rate (Kvs): 30 m3/h

Product category: Control Valves

Brand: Siemens

Country of origin: Germany

Stock: 1 pc (subject to availability)

Price: Available on request

Location: Brands > Siemens > MXG462S50-30 (listed alphabetically)

MXG462S.. Modulating Control Valve with Magnetic Actuator

The control valves MXG462S.. are mixing or through-port valves. They are supplied with the magnetic actuator ready fitted, equipped with an electronic module for position control and position feedback. The short positioning time, high resolution and high rangeability make these valves ideal for modulating control of open and closed circuits with the highest control requirements.


































MXG462S50-30 Siemens Control Valve

PN class: PN 16

Operating voltage: AC 24 V / DC 20...30 V

Power consumption: 65 VA

Positioning signal: DC 0/2...10V or DC 0/4...20 mA

Positioning time: 2 s

Flow rate (Kvs): 30 m3/h

Medium temperature: -20...130 °C

Connection thread: G 2¾" B

Nominal size: DN50

For more technical information, please refer to data sheet.








































If you have any questions about this product please email us at saadwaheed09@gmail.com
