MT4003C2011 - MT4003C2011 Honeywell Actuator, Servomotor | Combustion Controls - Industrial Components

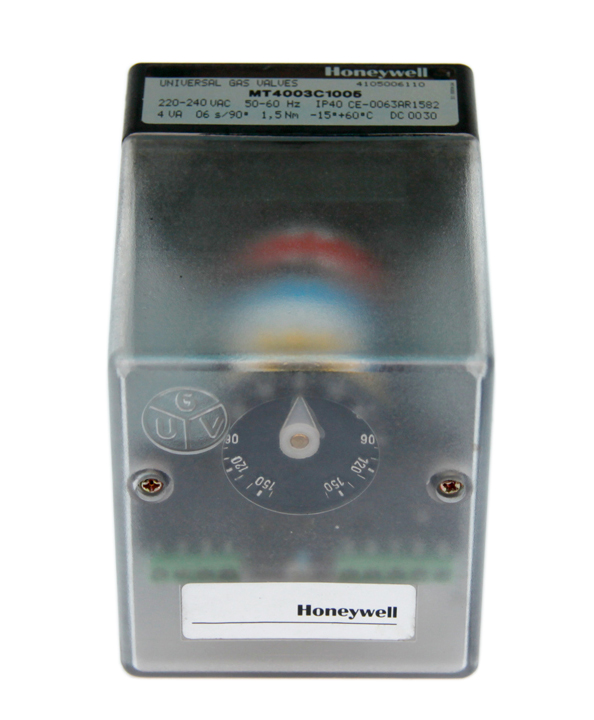

MT4003C2011 - Damper Actuator

Type: MT4003C2011

Voltage: 220-240 Vac 50/60 Hz

Rated torque: 1.5 Nm

Stroke: 90 degrees

Timing: 6 sec. at 50Hz

Rotation direction: Right rotation

Brand: Honeywell

Condition: Used

Stock: Subject to availability

Price: Available on request

Product location: Brands > Honeywell > MT4003C2011

Application

The MT4000, MT4001, MT4002 and MT4003 are servo motors to control and govern air lock of gaseous and liquid fuel burners. The servo motors are suitable for burners with small to medium capacity.

MT4003C series can be used with standard low featured ON/OFF ignition controllers, where the pre-purge is provided by the servomotor. Including relays for 2 wire thermostat connection, low fire adjustment switch and fail safe pre-purge timer.

Voltage: 220-240 Vac 50/60 Hz

Rated torque: 1.5 Nm

Stroke: 90 degrees

Timing: 6 sec. at 50Hz

Rotation direction: Right rotation

Maximum adjustable stroke: 0 to 160 degrees

Temperature range: -15 to +60 °C

Enclosure: IP40

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
