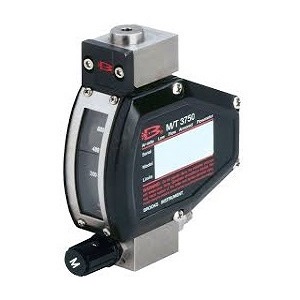

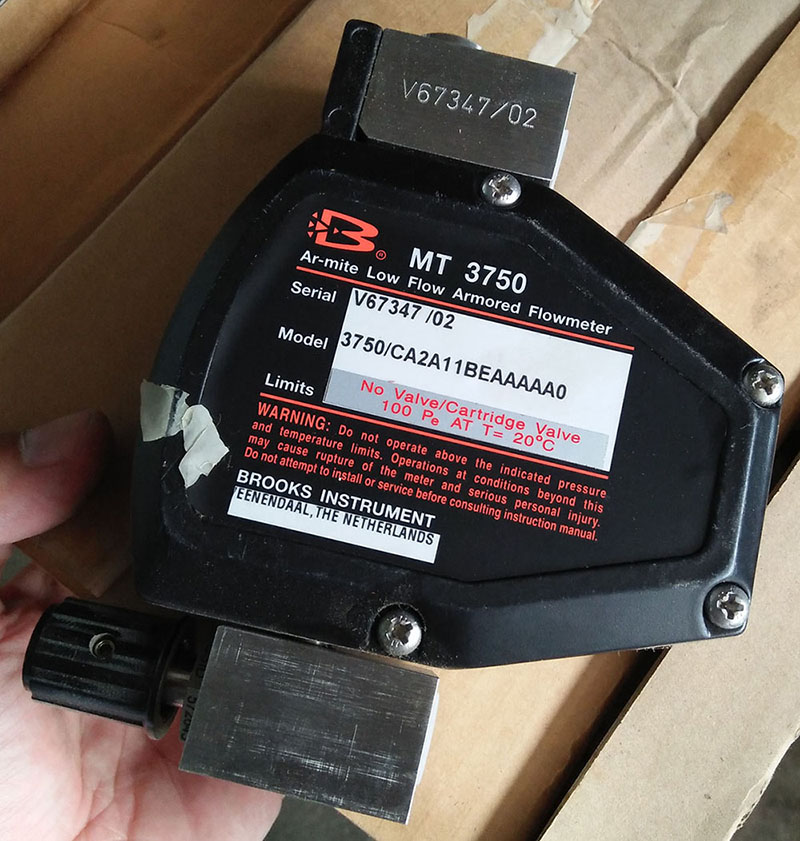

MT3750 - Low Flow Armored Flowmeter

Type: MT 3750

Model: 3750/CA2A11BEAAAAA0

Material specification: 316L stainless steel

Meter size: Size 2 - 316L stainless steel Float

Fluid: Gas

Brand: Brooks Instrument, Netherlands

Condition: New

Stock: Subject to availability

Price: Available on request

Product location: Brands > Brooks Instrument > MT3750

Overview

Brooks® MT3750 meter operation is based on the variable area principle. The all metal meter is ideal for a variety of gas and liquid applications. These meters are indispensable where high pressure operating conditions exist.

Product Description

The Brooks® Ar-Mite™ is a reliable, low flow metal tube flowmeter with 316L stainless steel wetted parts. The magnetically coupled indicator provides a highly reliable method of indication. This model is a practical and economical approach to low flow rate indication for high pressure and difficult to handle fluids.

































MT3750

Model: 3750/CA2A11BEAAAAA0

Material specification: 316L stainless steel

Meter size: Size 2 - 316L stainless steel Float

Construction: Standard design

Seals: Viton O-rings

Connection size and type: 1/4" NPT (F) - Integral

Connection orientation: Horizontal inlet and outlet (threaded connections only)

Valve configuration: Low flow valve on onlet

Inscription: Direct reading

Fluid: Gas

Electrical output: None

Alarm relay / Transmitter power supply: None

Accessory: None

For more information on technical data, please see data sheet.
