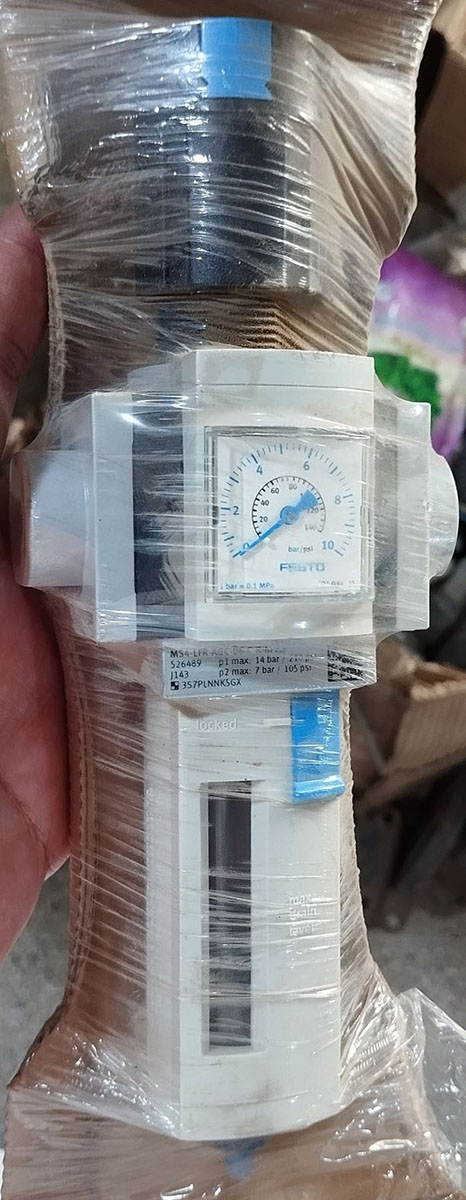

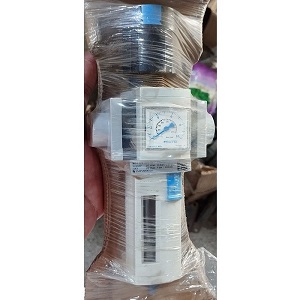

MS4-LFR-AGC-D6-C-R-M-AS Filter Regulator

Complete model: MS4-LFR-AGC-D6-C-R-M-AS

Part number: 526489

Width dimension: 40 mm

Connection (AGC): 3/8" on both sides (659583)

Pressure regulation range (D6): 0.3 ... 7 bar

Data sheet: Available on request

Brand: Festo

Condition: New

Stock: Subject to availability

Price: Available on request

Product location on website: Brands > Festo > MS4-LFR

Festo MS4-LFR Compressed Air Filter Regulator
  • Filter and pressure regulator in a single device
  • Width dimension 40 mm
  • Pressure regulation range 0.3 ... 7 bar
  • Filtration design 5 µm
  • Festo 659583 3/8" connection on the left
  • Festo 659583 3/8" connection on the right
  • Plastic bowl guard
  • Can be locked using accessories









    • Complete model: MS4-LFR-AGC-D6-C-R-M-AS

    Part number: 526489

    Width dimension: 40 mm

    Connection: 3/8" on both sides (659583)

    Pressure regulation range (D6): 0.3 ... 7 bar

    Grade of filtration (C): 5 µm ... 40 µm

    Condensate drain (M): Manually

    Lockability (AS): Can be locked using accessories

    Mounting position: Vertical +/- 5°

    Temperature of medium: -10°C to +60°C

    For more information on technical data, please see data sheet.

    If you have any questions about this product please email us at saadwaheed09@gmail.com
