Application

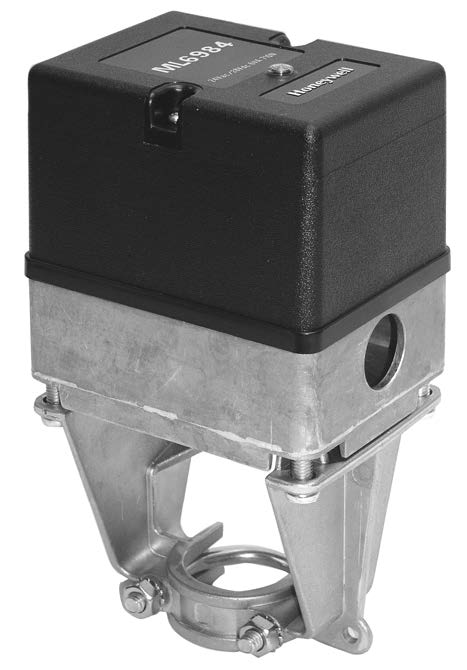

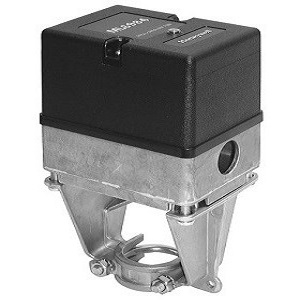

The ML6984 is a self-contained, self-adjusting, linear motorized linkage that mounts directly onto V5011 two-way or V5013 three-way valves and provides up to 19mm (3/4") of linear travel (stem-lift). For use with low voltage 3-wire SPDT Series 20 (on-off), Series 60 (floating) electromechanical (dry contacts) or electronic (triac) output controllers.
Features
Allows the use of one common transformer power supply for multiple actuators and controllers
Self-contained, motorized valve linkage
Linkage self-adjusts to valve stroke of up to 19mm (3/4")
Multipose mounting
Strong valve seat closing force 710 Newton (160 lbs.)
Compact size for easy installation in confined area
One device for either Vac or Vdc power supply application
Electronic current sensing provides internal protection and positive full closing force
Compatible with 3-wire or 5-wire control systems
Used with: V5011/13, VGF21, and VGF22 up to 3 in.; V5045 w/ 272629A
Supply voltage: 24V (Nominal), 50/60 Hz or 24 to 28 Vdc
Power consumption: 6 VA (Running), 12 VA (Valve seating)
Switch ratings: 24 Vac
Control signal: SPDT; Two-position; Floating
Stroke: 19mm (3/4") or less
Stroke timing: Approx. 63 seconds for 3/4" stroke
Closing force: 710N (160 lbs.)
Operating temperature: 0°C to 55°C
Weight: Approx. 1 kg
For more information on technical data, please see data sheet.
