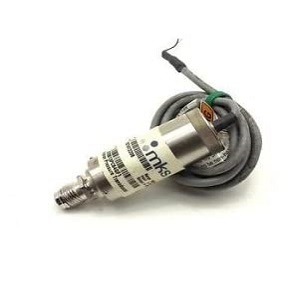

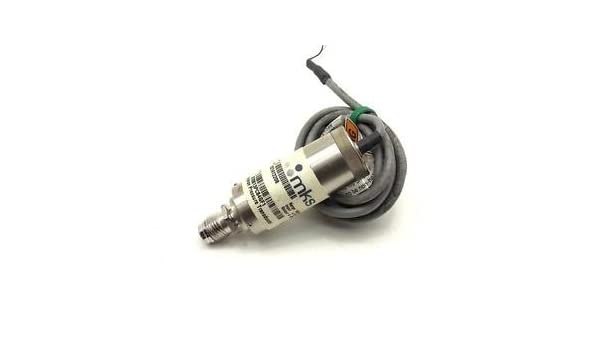

870B Series - Pressure Transducer

Code: 870B33PCB2GF1

Input: 13 - 32 VDC

Output: 0 - 10 VDC

Full scale range: 3000 psia (33P)

Fitting: Swagelok® 4-VCR male, rotatable

Data sheet: Available on request

Brand: MKS Instruments (USA)

Condition: New

Stock: 1 pc (subject to availability)

Price: Available on request

Location: Brands > MKS > 870B33PCB2GF1

Product category: Pressure Transducers

870B33PCB2GF1 - a single-ended transducer, scale range 3000 psia, Swagelok® 4-VCR male rotatable fitting, 0-10 VDC output, accuracy 1% of reading uncertainty, flying lead with 6' (1.8m) cable, for indoor use.

Overview

The 870B/872B transducer requires a minimum power supply of 12 VDC and a maximum power supply of 36 VDC, regulated to ±5%. The specific input power required depends on the output configuration of your unit.

The 870B/872B transducer is compatible with most pressure, flow, flow ratio, and trottling valve controllers.

The 870B represents the single ended transducer, the 872B represents the flow-through transducer.

Data sheet is available on request.



















Input: 13 - 32 VDC

Output: 0 - 10 VDC

Full scale range: 3000 psia (33P)

Fitting: Swagelok® 4-VCR male, rotatable

Accuracy: 1.00% of reading

Connection: Flying lead with 6' (1.8m) cable (white power, green return).

Environmental option: Standard unit (indoor use)

Operating temperature range: 0° ... 50°C

Mounting position: Any

Data sheet available on request.














If you have any questions about this product please email us at saadwaheed09@gmail.com
