MBS 33M - Pressure Transmitter

Type: MBS 33M

Pressure connection size: 1/2

Pressure range: 0 - 10 bar

Output signal: 4 - 20 mA

Supply voltage: 10 - 30 V DC

Code no.: 060G1655

Specification key: MBS 33M-2011-A9AB08-0

Origin: Denmark

Condition: New

Stock: Subject to availability

DIN-plug: Ordered separately

Price: Available on request

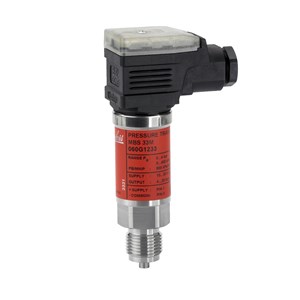

Pressure Transmitter MBS 33M

The standard pressure transmitter MBS 33M is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.

The felxible pressure transmitter programme covers a 4 - 20 mA output signal, absolute or gauge (relative) versions, measuring ranges from 0 - 1 to 0 - 600 bar. A wide range of pressure and electrical connections.

Excellent vibration stability, robust construction, and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.




























MBS 33M (060G1655)

Output signal: 4 - 20 mA

Supply current: 28 mA max.

Supply voltage: 10 - 30 V DC

Pressure range: 0 - 10 bar

Overload pressure: 20 bar (max.)

Pressure unit reference: Gauge (relative)

Pressure connection HEX: 27 mm

Pressure Male/Female: Male

Pressure connection size: 1/2

Pressure connection standard: EN 837

Pressure connection type: G

Electrical connection size: Pg 13.5

Electrical connection: DIN-plug

Enclosure rating: IP65

Code no.: 060G1655

Specification key: MBS 33M-2011-A9AB08-0

Gross weight: 0.26 kg

For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
