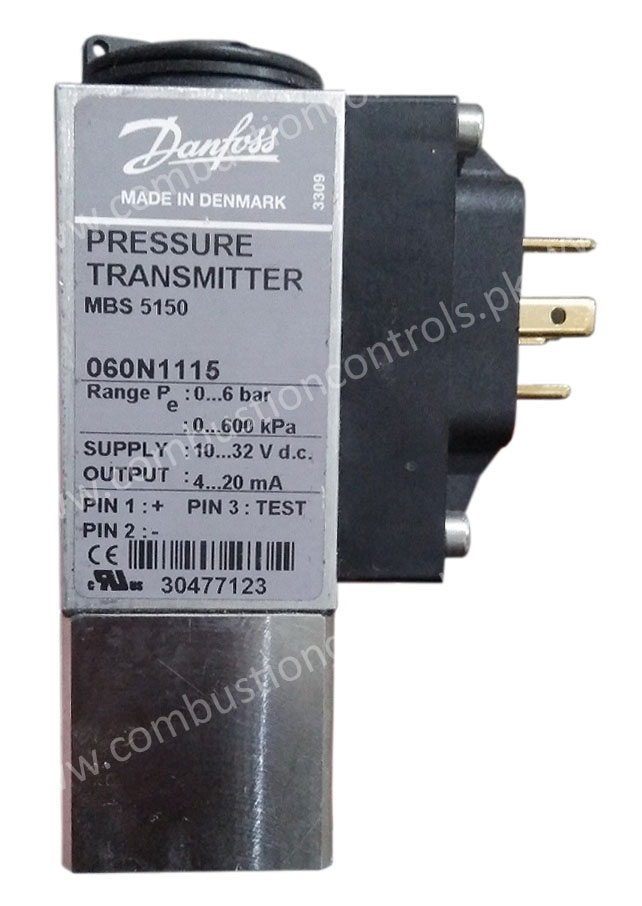

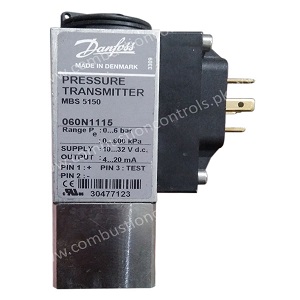

MBS 5150 (060N1115) - Pressure Transmitter

With Pulse Snubber

Type: MBS 5150

Pressure range: 0 - 6 bar

Output signal: 4 - 20 mA

Supply voltage: 10 - 32 V DC

Code no.: 060N1115

Origin: Made in Denmark

Condition: New

Availability: 1 pc (subject to availability)

DIN-plug: Ordered separately

Price: Available on request

MBS 5150

MBS 5150 with integrated pulse-snubber is suitable in marine applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions.




























MBS 5150

Pressure range: 0 - 6 bar

Output signal: 4 - 20 mA

Supply current: 28 mA max.

Supply voltage: 10 - 32 V DC

Pulse snubber: Yes

Overload pressure: 20 bar (max.)

Pressure unit reference: Gauge (relative)

Pressure Male/Female: Female

Pressure connection size: 1/4

Pressure connection type: G

Sensor temperature range: -40 to +85 °C

Electrical connection: DIN-plug

Electrical connection size: Pg 11

Enclosure rating: IP65

Code no.: 060N1115

Net weight: 0.4 kg approx.

For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
