MBC 5100 - Heavy Duty Pressure Switch

Type: MBC 5100

Code: 061B100366 / 061B1003

Specification key: 4241-1DB04

Pressure connection size: G 1/4

Regulating range (Pe): 10 - 100 bar (1-10 MPa)

Max. test pressure: 150 bar

Brand: Danfoss (Denmark)

Condition: New

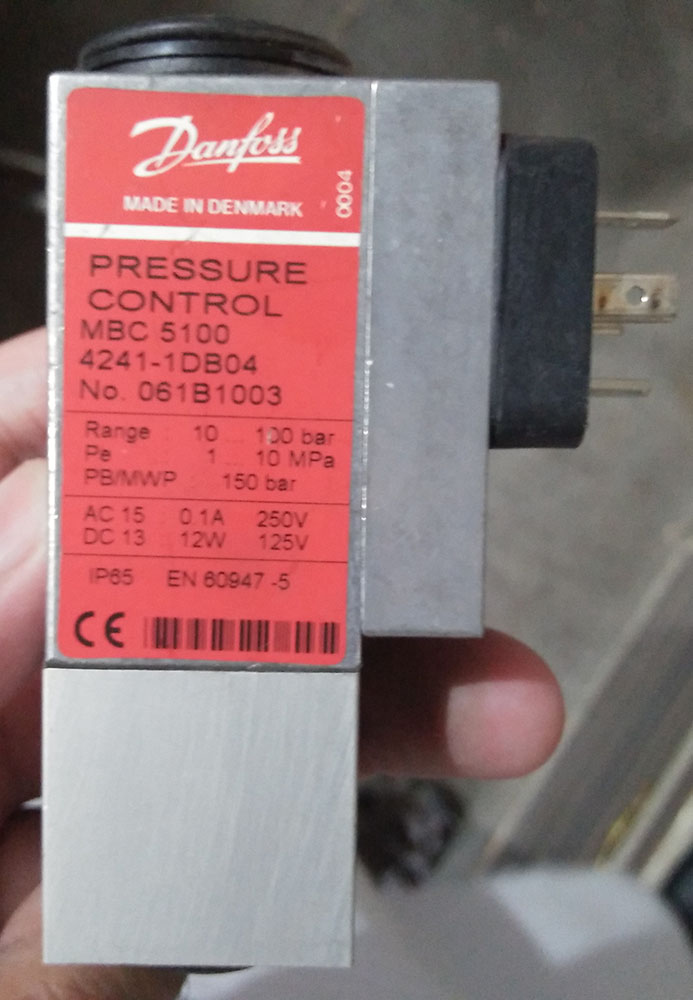

Stock picture: MBC 5100 (061B1003/100366)

Stock: 1-2 pcs (subject to availability)

Price: Available on request

Location: Brands > Danfoss > MBC 5100

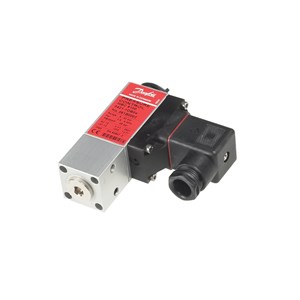

MBC 5100 Heavy Duty Pressure Switch

  • Used in industrial and marine applications
  • High vibration resistance
  • Intended for alarm indication, shut down, control and diagnostics in many applications - motors, gears, thrusters, pumps, filters, compressors, etc.
  • SPDT contact function
  • Regulating range Pe 10-100 bar (1-10 MPa)
  • Pressure connection size G 1/4















    • MBC 5100

    Code: 061B100366 / 061B1003

    Specification key: 4241-1DB04

    Regulating range (Pe): 10 - 100 bar (1-10 MPa)

    Burst pressure: 300 bar

    Pressure connection size: G 1/4

    Pressure sensing element: Diaphragm

    Electrical connection: DIN-plug

    Electrical connection size: Pg 11

    Ambient temperature range: -10°C to +85°C

    Enclosure rating: IP65

    Gross weight: 0.31 kg

    For more information on technical data, please see data sheet.







    If you have any questions about this product please email us at saadwaheed09@gmail.com
