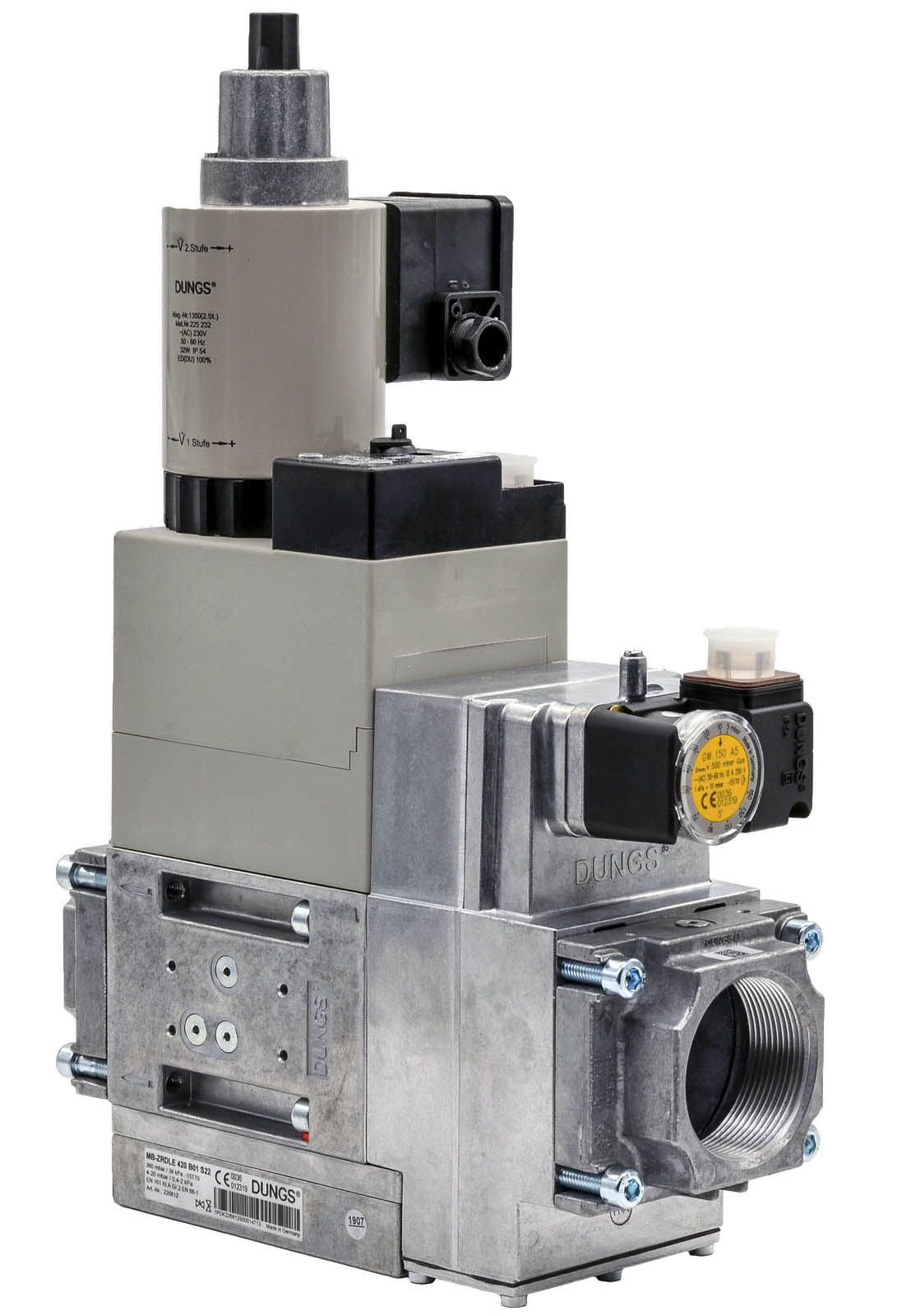

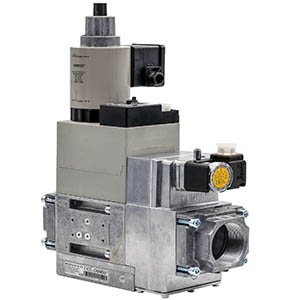

MB-ZRDLE 420 B01 S22 - DUNGS GAS VALVE

Type: MB-ZRDLE 420 B01 S22

Art.-Nr.: 226920

Magnet-Nr.: 1232

Mat.-Nr.: 224030

Nominal diameter: Rp 1 - 2 (Flanges not included)

Voltage / frequency: 230 VAC 50/60 Hz

Max. operating pressure: 360 mbar (36 kPa)

Pressure switch: GW50A5 (attached)

Product Category: Valves (listed alphabetically)

Brand: DUNGS

Condition: New

Stock: 1 piece (subject to availability)

Price: Available on request

Location on website: Brands > Dungs > MB-ZRDLE 420 B01 S22 (Listed Alphabetically)

Note: Product picture listed is not a stock picture.

Technical description

The DUNGS GasMultiBloc integrates filter, regulator, valves and pressure switches in one compact fitting.

  • Dirt trap: microfilter
  • One regulator and two main valves: B01
  • One 1-stage valve and one 2-stage valve
  • One valve is fast opening, one valve is slow or fast opening
  • Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
  • Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
  • High flow rates with low pressure drop
  • DC solenoid drive interference degree N
  • Main volume restrictor and partial volume restrictor at valve V2
  • Hydraulic opening delay
  • Flange connections with pipe threads as per ISO 7/1
  • Simple mounting, compact, light weight

  • Application

    The modular system permits individual solutions in gas safety and regulator engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
















    Specifications

    Nominal diameter: Rp 1, 1 1/4, 1 1/2, 2 (flange with pipe threads as per ISO 7/1, DIN 2999)

    Max. operating pressure: 360 mbar (36 kPa)

    Output pressure ranges: 4 - 20 mbar (0.4 - 2 kPa)

    Media: Gases of families 1, 2, 3 and other neutral gaseous media

    Ambient temperature: -15 °C to +70 °C (Do not operate MB-ZR below 0°C in liquid gas systems)

    Dirt trap: Sieve, microfilter, changing the filter is possible without removing the valve.

    Pressure switch: GW 50 A5 (attached)

    Pressure regulator: Pressure regulator compensated for residual pressure, leakproof seal when switched off by means of valve V1 as per DIN EN 88 Class A. Setpoint spring permanently installed (no spring exchange possible). A vent line above roof is not required. Internal pulse tap provided.

    Solenoid valve V1: Valve as per DIN EN 161 Class A Group 2, fast opening, fast closing

    Solenoid valve V2: Valve as per DIN EN 161 Class A Group 2, fast closing, slow opening, with partial and main volume restrictor

    Measuring/Ignition gas connection: For G 1/8 as per DIN ISO 228, refer to Pressure taps on page 2 of Data Sheet.

    Burner pressure monitor pBr: Connection downstream of valve V2, pressure switch mountable on adapter laterally

    Voltage / Frequency: 230 VAC 50/60 Hz

    Magnet-Nr.: 1232

    Mat.-Nr.: 224 030

    Weight: 10.2 kg (excluding flanges and packing weight)

    For more information on technical data, please see data sheet.
