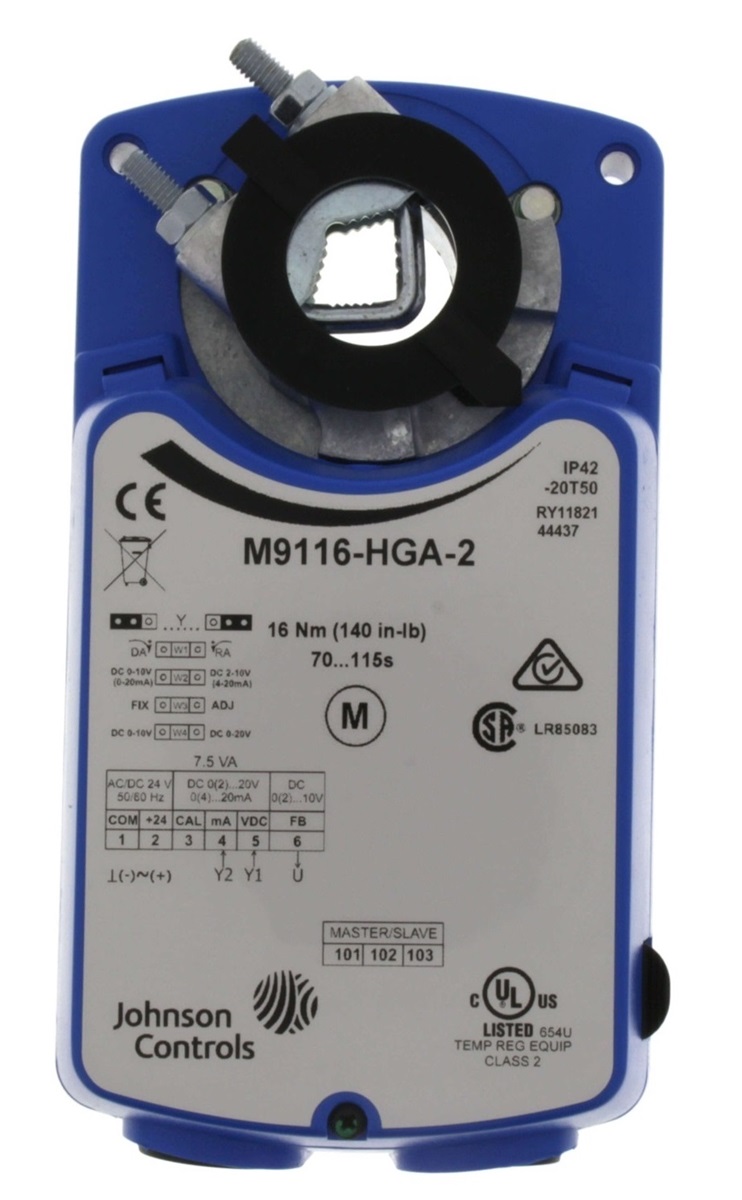

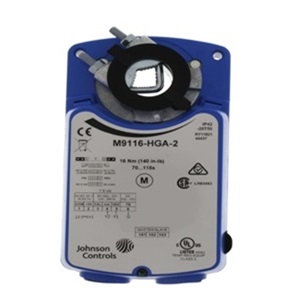

M9116-HGA-2 Johnson Controls Electric Non-Spring Return Actuator, M9116-HGA-2, Proportional Control 16Nm

M9116-HGA-2 - Non-Spring Return Actuator

Type: M9116-HGA-2

Power Supply: 24 VAC at 50/60 Hz or 24 VDC

Input Signal: DC 0(2) to 10 V, DC 0(4) to 20 V, or DC 0(4) to 20 mA

Feedback Signal: 0 to 10 VDC

Running Torque: 16 Nm (140 lb-in)

Rotation Time: 70 to 115 seconds

Product Category: Actuators (listed alphabetically)

Brand: Johnson Controls

Origin: Product of Mexico

Condition: New

Stock: Subject to availability

Price: Available on request

Features:

Electric Non-Spring Return Actuator

Direct-Mount

Proportional Control

VDC and mA Input with Zero and Span

Operates on 24 VAC or VDC power

Rotation is mechanically limited to 93° by integral end-stops.

An anti-rotation bracket prevents lateral movement of the actuator.

Offer the most suitable choice for the application.

Power Supply: 24 VAC at 50/60 Hz or 24 VDC

Input Signal: DC 0 (2) to 10 V, DC 0 (4) to 20 V, or DC 0 (4) to 20 mA

Feedback Signal: DC 0 to 10 V or DC 2 to 10 V for 90° (10 VDC at 1 mA) corresponds to input signal span selection

Running Torque: 16 Nm (140 lb-in)

Rotation Range: 0 to 90° in 5-degree increments, mechanically limited to 93°

Rotation Time: 70 to 115 seconds

Operating Conditions: -20 to 50°C

Weight: 1.3 kg

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
