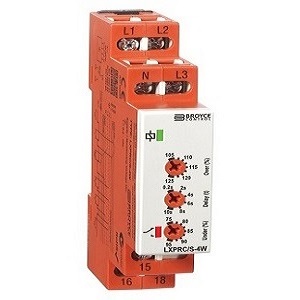

LXPRC/S-4W - Voltage Monitoring Relay

Type: LXPRC/S-4W

Monitoring mode: Under and Over voltage

Time delay: 0.2 - 10 s

Contact configuration: SPDT

Contact current: 8A

Brand: Broyce Control

Origin: Made in UK

Condition: New

Availability: 1 pc (subject to availability)

Price: Available on request

Location: Brands > Broyce Control > LXPRC/S-4W

LXPRC/S-4W

Phase Failure, Phase Sequence, Under and Over Voltage plus Time Delay

  • 17.5mm DIN rail housing
  • Microprocessor based
  • True R.M.S monitoring
  • Monitors own supply and detects if one or more phases exceed the set Under or Over voltage trip levels
  • Measures phase to neutral voltages
  • Detects incorrect phase sequence, phase loss and neutral loss
  • Adjustments for Under and Over voltage trip levels
  • Adjustment for Time delay (from an Under or Over voltage condition)
  • 1 x SPDT relay output 8A
  • Green LED indication for supply status
  • Red LED indication for relay status
  • The product monitors it's own three-phase supply and for the output relay to energise, all phases (and neutral) must be present, the phase sequence correct and the phase to neutral voltages within the set Under/Over trip levels. If any of these conditions are not met, the relay will de-energise.




























    Monitoring mode: Under and Over voltage

    Trip level (Under): 75 - 95% of Un

    Trip level (Over): 105 - 125% of Un

    Time delay (t): 0.2 - 10 s

    Output: SPDT 8A @ 250V (AC1)

    For more information on technical data, please see data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
