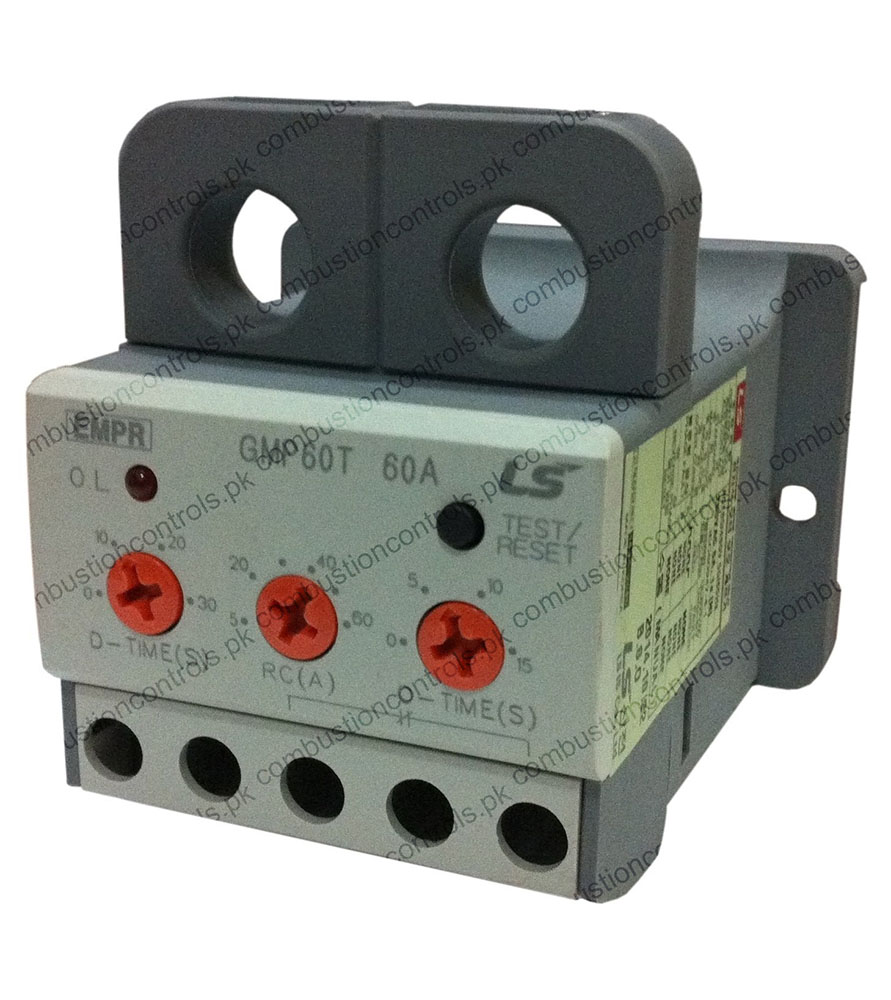

LS Electronic Motor Protection Relay GMP60T

Electronic Motor Protection Relay

GMP Series

Type: GMP60T

Nominal current: 60 A

Current setting range: 5 - 60 A

Brand: LS, Korea

Condition: New

Stock: Subject to availability

Price: Available on request

Product Category: Overload Relays

Description

EMPR replacing thermal overload relay is electronic motor protection relay which is used to protect the low voltage motor and also called as Electronic Overcurrent Relay or an Electronic Overload Relay.

EMPR has compact and simple appearance so it can be combined with the magnetic contactor.

Characteristics

Small size, economical

Delay time setting in starting and operation

Over current, phase failure protection

Definite time characteristics

Wide current setting range

Screw or DIN rail mounting

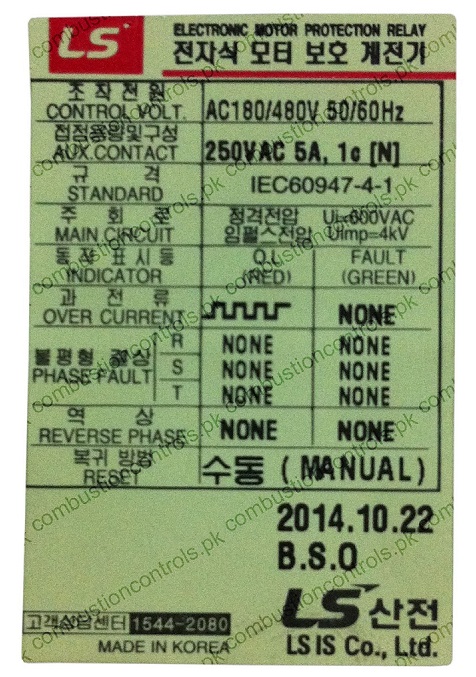

Specifications

Model: GMP60T

Type: Tunnel type

Number of sensors: 2CT

Protection: Overcurrent, phase failure, lock/stall.

Nominal current: 60A

Current adjustment range: 5 - 60 A

Operating time characteristics: Definite

Time setting:

D time: 0.2~30 sec

O time: 0.2~15 sec

Control voltage: AC 180~480V

Rated frequency: 50/60 Hz

Auxiliary contact: 1c (N)

Enviroment temperature (operation): -25~70°C

Trip indicator: Red LED

Dimensions (mm) W x H x D: 72 x 67 x 69

Mounting type: Separate mount (Screw or DIN rail)

If you have any questions about this product please email us at info@combustioncontrols.pk
