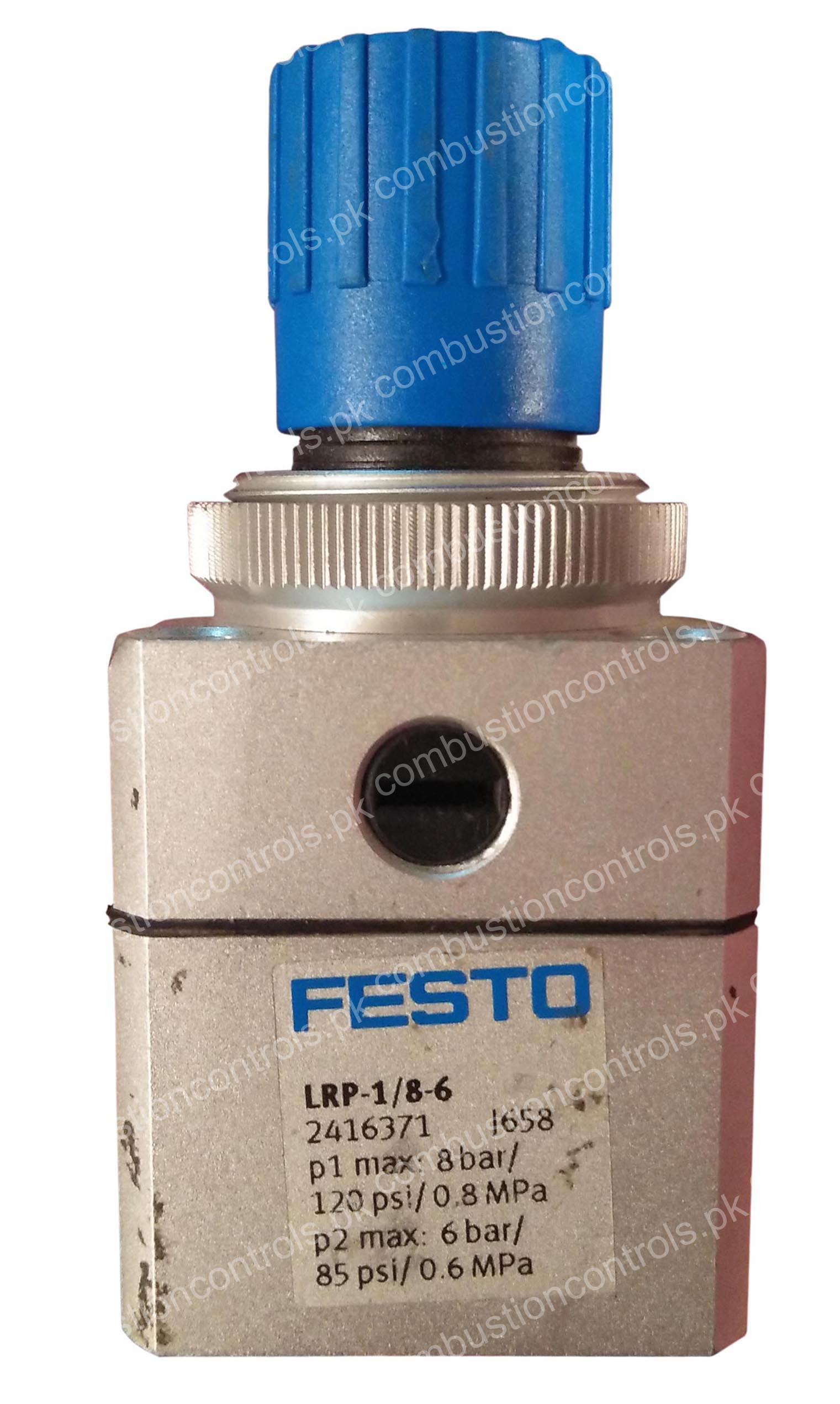

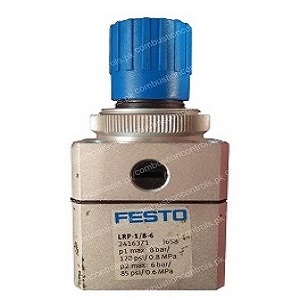

LRP-1/8-6 - Precision Pressure Regulator

Type: LRP-1/8-6

Design: Piloted precision diaphragm regulator

Pneumatic connection: G 1/8

Pressure regulation range: 0.1...6 bar

Max. pressure hysteresis: 0.02 bar

Operating pressure: 1...8 bar

Brand: Festo

Condition: Used

Stock: Subject to availability

Price: Available on request

The precision pressure regulator is suitable for sensitive applications requiring a hysteresis of 0.02 bar. The outlet pressure p2 can be set within the pressure regulation range. In the event of a failure of the compressed air supply, the outlet pressure p2 is vented via connection 3 (secondary venting).

Precision pressure adjustment possible both in static and dynamic applications.

Operating pressure fluctuations are almost entirely compensated.

Good response characteristics during rapid changes to operating pressure and flow rate.










Pneumatic connection: G 1/8

Pressure gauge connection: G 1/8

Pressure regulation range: 0.1...6 bar

Max. pressure hysteresis: 0.02 bar

Pressure indicator: G 1/8 prepared

Operating pressure: 1...8 bar

Mounting position: Any

Actuator lock: Rotary knob with detent

Standard nominal flow rate: 300 l/min

Operating medium: Compressed air, inert gases

Temperature of medium: -10°C to +60°C

For more information on technical data, please see data sheet.
