KP15 - Dual Pressure Switch

Type: KP 15

Product description: Dual pressure control

Regulating range (LP): -0.2 - 7.5 bar

Differential (LP): 0.7 - 4.0 bar

Regulating range (HP): 8 - 32 bar

Differential (HP): 4 bar

Code no.: 060-124366

Origin: Made in Poland

Condition: New

Stock: Subject to availability

Price: Available on request

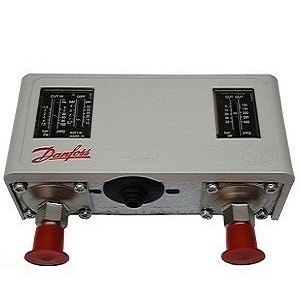

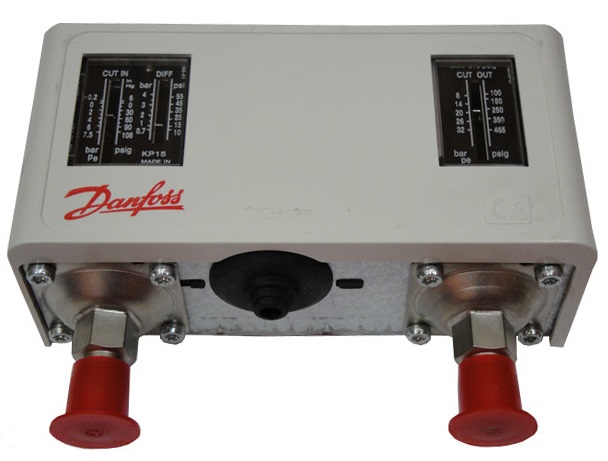

KP15

Danfoss dual pressure switch is designed for use as a pump guard to control and protect supply water pumps. It combines the functions of a pressure switch and a flow monitoring device. The left hand pressure bellows control the pump pressure. The right hand bellows cut out the pump if the suction pressure is too low. In this way the pump is protected from running dry and consequent bearing damage.




























KP 15 (060-124366)

Regulating range (LP): -0.2 - 7.5 bar

Differential (LP): 0.7 - 4.0 bar

Regulating range (HP): 8 - 32 bar

Differential (HP): 4 bar

Reset function, left side: Auto

Reset function, right side: Manual (max.)

Contact system: SPDT + LP signal

Pressure connection size: 1/4

Pressure connection standard: DIN 8906

Pressure connection type: Flare

Pressure sensing element: Bellows

Gross weight: 0.5 kg

Code no.: 060-124366























If you have any questions about this product please email us at saadwaheed09@gmail.com
