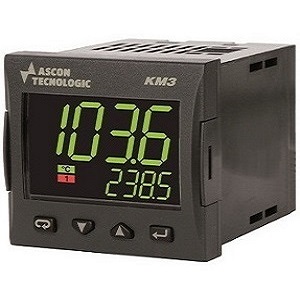

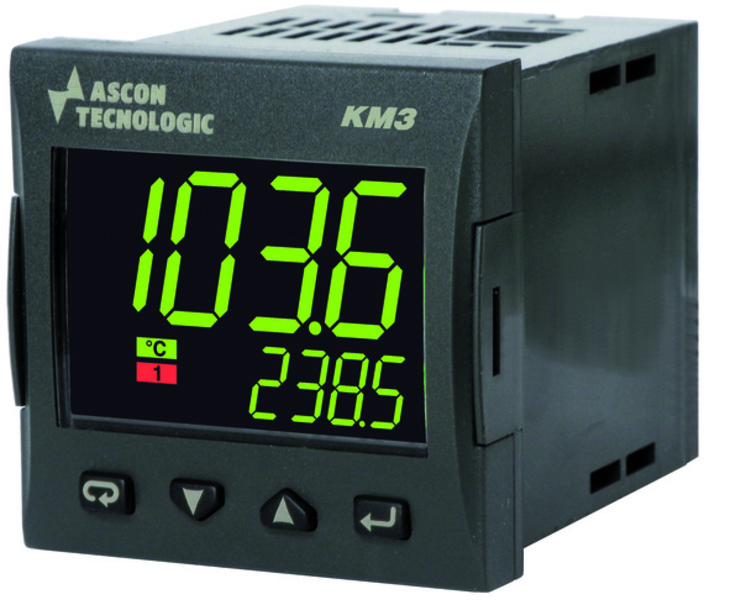

KM3 - Temperature Controller 1/16 DIN

Model code: KM3W-HCIRRD-E

Display: White

Power supply: 100 - 240 VAC

Input: TC, PT100, PT1000, mA, mV, V + Digital Input 1

Output OP1: Analogue output (0/4...20 mA, 0/2...10 V)

Front size: 48 x 48 mm

Brand: Ascon Technologic

Origin: Italy

Stock: Subject to availability

Price: Available on request

KM3 is a panel mounting, Class II instrument. It has been designed with compliance to the European Directives. All information about the controller use can be found in the engineering manual.

Line: KM3

Optional functions: None with white display

Power supply: 100 - 240 VAC

Input: TC, PT100, PT1000, mA, mV, V + Digital Input 1

Output OP1: Analogue output (0/4...20 mA, 0/2...10 V)

Output OP2: Relay (1 SPST NO, 2 A/250 Vac)

Output OP3: Relay (1 SPST NO, 2 A/250 Vac)

Output OP4: Digital I/O (see the Electrical Connections paragraph for details)

Terminal type: With plug-in screw type terminal blocks

Overall dimensions (L x H x D): 48 x 48 x 63 mm

Please refer to data sheet for more information.

If you have any questions about this product please email us at saadwaheed09@gmail.com
