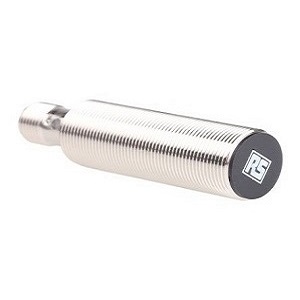

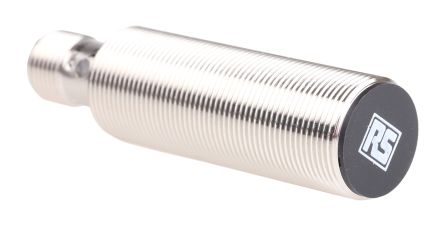

IME 18-05BPSZC0SF38 - Inductive Proximity Sensor

Type: IME 18-05BPSZC0SF38 (1050866)

RS code: 701-8244

Thread size: M18 x 1

Sensing range (Sn): 5 mm

Switching output: PNP (NO)

Supply voltage: 10...30 VDC

Brand: SICK / RS

Origin: Made in Hungry by SICK

Condition: New

Cable: Not Inlcuded

Availability: 1 pc (subject to availability)

Price: Available on request

RS M18 x 1 Inductive proximity sensor PNP - NO Output, 5 mm Detection, IP 67.

















Housing: Cylindrical thread design (standard)

Thread size: M18 x 1

Diameter: ø 18 mm

Sensing range (Sn): 5 mm

Safe sensing range (Sa): 4.05 mm

Installation type: Flush

Switching frequency: 1,000 Hz

Connection type: Male connector M12, 4-pin

Switching output: PNP

Output function: NO (normally open)

Electrical wiring: DC 3-wire

Enclosure rating: IP67

Supply voltage: 10...30 VDC

Ambient operating temperature: -25° ... +75°C

Housing material: Metal, Nickle-plated brass

Sensing face material: Plastic, PA 66

Housing length: 69 mm

Thread length: 52 mm

Items supplied: Mounting nut, brass, nickle-plated (2x)

For more information on technical data, please see data sheet.








If you have any questions about this product please email us at saadwaheed09@gmail.com
