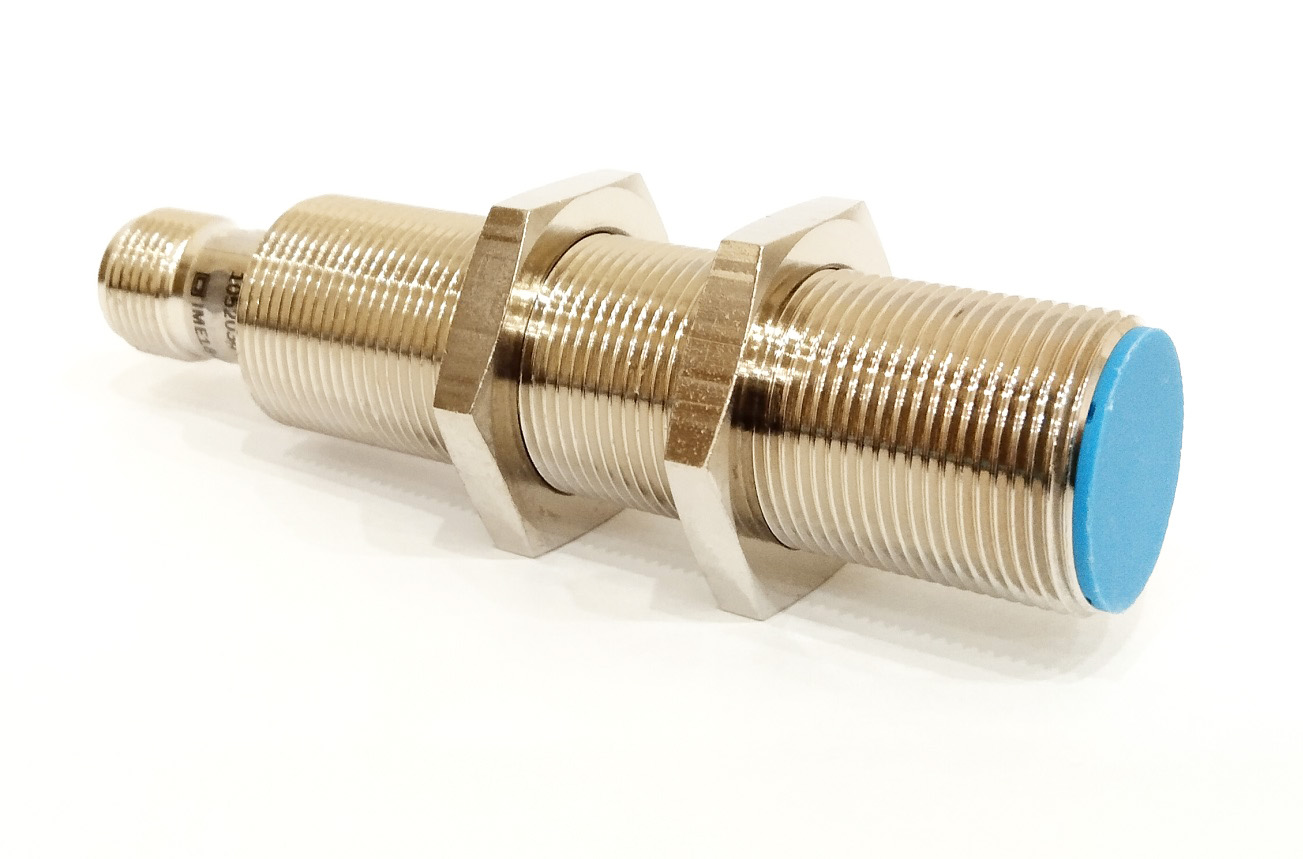

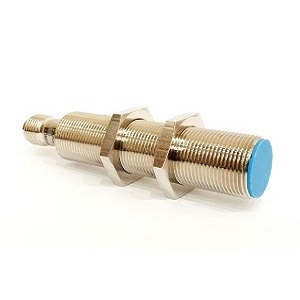

IME18-05BPOZC0SS14 - Inductive Proximity Sensor

Type: IME18-05BPOZC0SS14

Part no.: 1052036

Thread Size: M18 x 1

Sensing Range (Sn): 5 mm

Installation Type: Flush

Switching Output: PNP

Output Function: NC

Supply Voltage: 10...30 VDC

Product Category: Proximity Sensors

Brand: SICK

Condition: New

Availability: 1 piece in stock

Cable: Not Inlcuded

Price: Available on request

IME18-05BPOZC0SS14 - Inductive Proximity Sensor

  • Inductive Proximity Sensor od standard design
  • Cylindrical thread design housing
  • M18 x 1 thread size
  • Sensing range Sn 5 mm
  • Switching output PNP (NC)
  • Supply voltage 10...30 VDC
  • M12 4-pin male connector


















    • Housing: Cylindrical thread design

    Thread size: M18 x 1

    Diameter: ø 18 mm

    Sensing range (Sn): 5 mm

    Safe sensing range (Sa): 4.05 mm

    Installation type: Flush

    Switching frequency: 1,000 Hz

    Connection type: Male connector M12, 4-pin

    Switching output: PNP

    Output function: NC)

    Electrical wiring: DC 3-wire

    Enclosure rating: IP67

    Supply voltage: 10...30 VDC

    Ambient operating temperature: -25° ... +75°C

    Housing material: Brass, nickle-plated

    Sensing face material: Plastic, PA 66

    Housing length: 80 mm

    Thread length: 63 mm

    Items supplied: Mounting nut, brass, nickle-plated (2x)

    Display: LED








    If you have any questions about this product please email us at saadwaheed09@gmail.com
