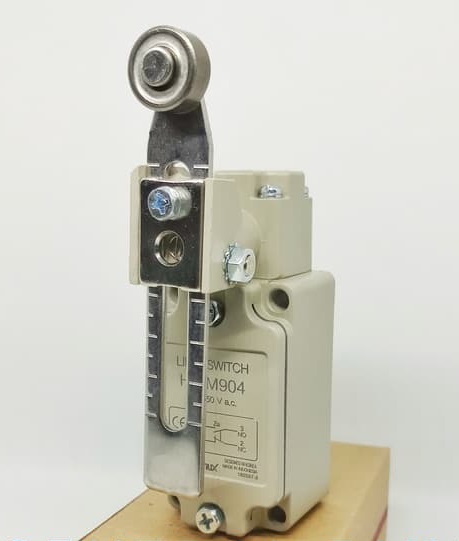

HY-M904 - Limit Switch

Type: HY-M904

Rated voltage: 250VAC

Actuator type: Adjustable roller lever

Operating force: 14 N max.

Pretravel (PT): 15° ±5°

Brand: Hanyoung Nux (Korea)

Made in: Indonesia

Condition: New

Stock: Subject to availability

Price: Available on request

HY-900 / HY-LM900 series

  • Solid die casting case and built-in the 2 circuits double micro switch.
  • High mechanical intensity with the heat resistance, oil proof and dust protection structure.
  • IP67 protective structure.
  • Check the operation state on the outside by attaching the operation indicator.




















    • Specifications

    Actuation type: Adjustable roller lever

    Rated voltage: 250VAC

    Rated current: 6A 250VAC (AC-15, DC-13)

    Operating force (OF): 14 N max.

    Releasing force (RF): 2.1 N min.

    Pretravel (PT): 15° ±5°

    Movement differential (MD): 12° max.

    Operation indicator: No

    Operating temperature: -10 °C to +70 °C

    Weight: Approx. 350g

    For more information on technical data, please see data sheet.





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
