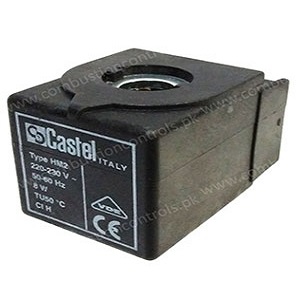

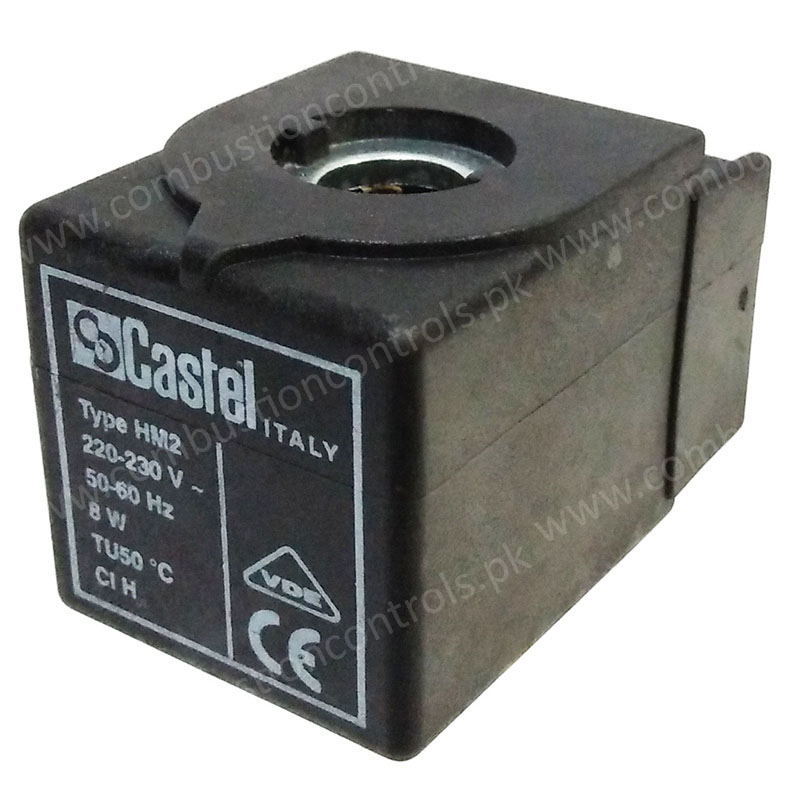

HM2 - Coil for Solenoid Valve

Coil type: HM2

Voltage: 220/230 VAC 50/60 Hz

Power: 8 W

Catalogue number: 9100/RA6

Product category: Coils

Brand: Castel, Italy

Stock: Subject to availability

Price: Available on request

Features
  • Used with Castel NC (normally closed) solenoid valves
  • Designed for continuous use.
  • Solid construction of the coil is suitable for heavy-duty applications in refrigerant systems.
  • Winding is made of copper wire, with insulation class H (180 °C), in compliance with IEC standard 85.
  • Class I protection ratings against electric contacts (requires an efficient ground system).
  • Terminals of the coil consist of two Faston connectors plus a Faston ground connector.
  • Approved by the German registration body, VDE.



























    • Voltage: 220/230 VAC

    Frequency: 50/60 Hz

    Power: 8 W

    Height: 35mm

    Width: 34mm

    Length: 57.5mm (including flat terminals)

    Ambient temperature: 50 °C max.

    Weight: 155 g

    For more information on technical data, please see data sheet.
