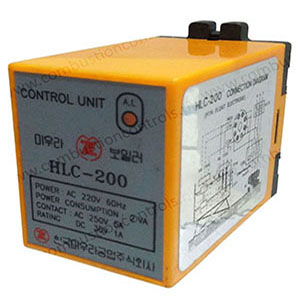

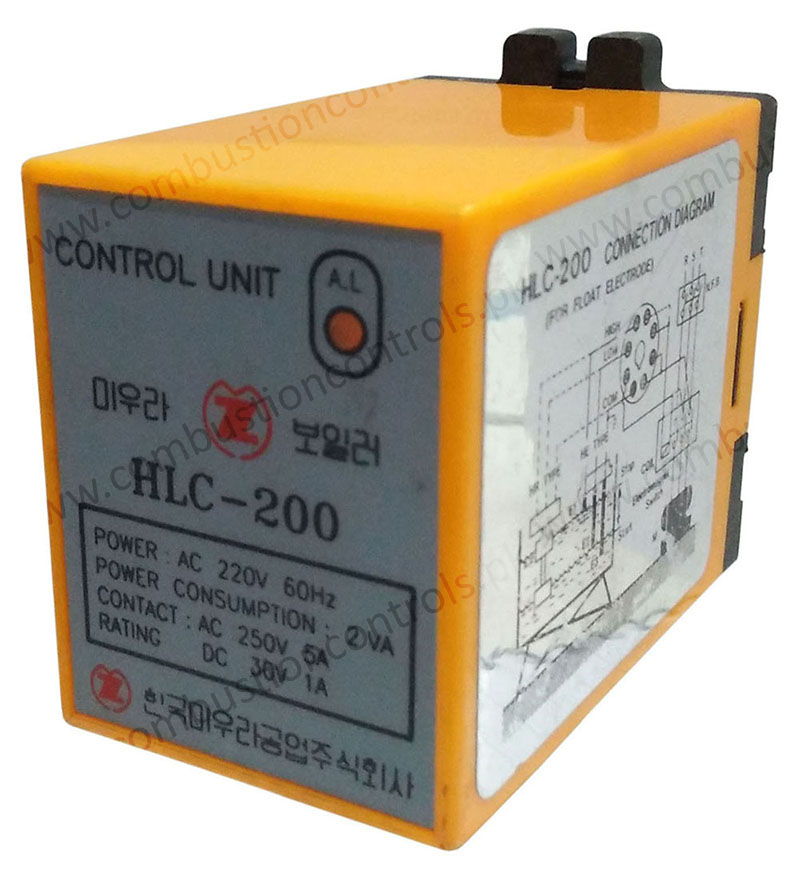

HLC-200 - Control Unit

Type: HLC-200

Function: Control or Alarm (1-SPDT)

Installation: Panel inside

Power source: AC 220V 50/60Hz

Brand: Hitrol, Korea

Condition: New

Availability: Sold

Price: Available on request

HLC-Series

HLC-Series is a Control and Alarm unit which is combination unit with Level Switches (HE, HQ, HR Series) for alarm or process control. Through the HLC-Series, the signal from level sensor can be used for high alarm or low alarm or automatic control for filling or discharge the liquid in the tank.

Principle

When the filling liquid reaches the electrode, a small alternating current flows, control unit produces a signal output after detecting of this alternating current. It can be used for alarm or process control.























Installation: Inside panel

Power source: AC 220V ±10%

Frequency: 50/60 Hz

Contact rating: AC 250V, 5A max.

Power consumption: 2 VA

Contact form: 1-SPDT

Distance between level sensor and unit: Max. 300m for cable of 1.25"

Ambient temperature: -20...+70 °C




















If you have any questions about this product please email us at saadwaheed09@gmail.com
