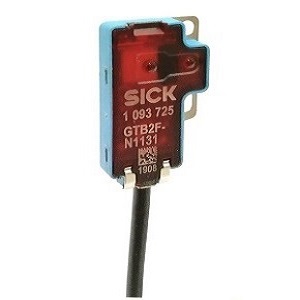

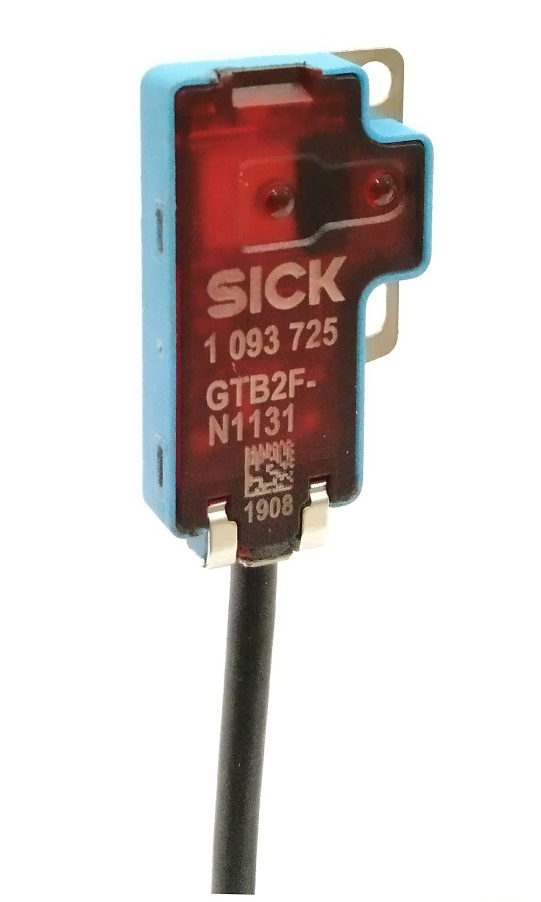

GTB2F-N1131 - Miniature Photoelectric Sensor

Type: GTB2F-N1131

Part Number: 1093725

Sensor Principle: Photoelectric proximity sensor

Detection Principle: Background suppression

Minimum Detectable Object (MDO): 0.1 mm

Sensing Range: 1 mm ... 30 mm

Supply Voltage: 10...30 VDC

Switching Output: NPN

Product Category: Photoelectric Sensors

Brand: SICK

Condition: New

Availability: 1 piece in surplus

Price: Available on request

Product Location: Brands > SICK > GTB2F-N1131

GTB2F-N1131 (1093725)

  • SICK photoelectric proximity sensor
  • Background suppression detection principle
  • Flat rectangular housing design
  • Minimum detectable object (MDO) 0.1 mm
  • Sensing range 1 mm ... 30 mm
  • Supply voltage 10...30 VDC
  • NPN switching output


















    • Sensor principle: Photoelectric proximity sensor

    Detection principle: Background suppression

    Dimensions (W x H x D): 14 mm x 24 mm x 3.5 mm

    Housing design (light emission): Rectangular

    Minimum detectable object (MDO): 0.1 mm (in 5 mm distance)

    Sensing range max.: 1 mm ... 35 mm

    Sensing range: 1 mm ... 30 mm

    Type of light: Visible red light

    Light source: PinPoint LED

    Light spot size (distance): size ø 4 mm (30 mm distance)

    Wave length: 660 nm

    Adjustment: None

    Supply voltage: 10...30 VDC

    Current consumption: 20 mA (without load)

    Switching output: NPN

    Switching mode: Light switching

    Connection type: Cable, 3-wire, 2 m

    Cable diameter: ø 2.3 mm

    Enclosure rating: IP67

    Ambient operating temperature: -20 ... +50 °C


    For more information on technical data, please see data sheet.











    If you have any questions about this product please email us at saadwaheed09@gmail.com
