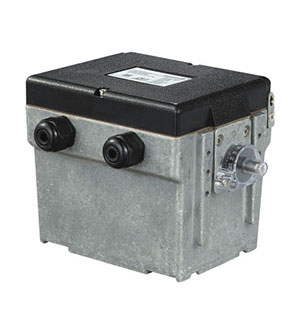

GT50-30T20E2 (16302461) - Kromschroder Gear Motor

Type: GT50-30T20E2

Running time: 30 s

Adjustment angle: 90°

Mains voltage: 220/240 VAC 50/60 Hz

Torque: 20 Nm

Modulating control: Continuous input signal

Brand: Kromschroder, Germany

Condition : Lotted

Stock: 1 pc (subject to availability)

Price: Available on request

Location: Brands > Kromschroder > GT50-30T20E2

Application

GT50 gear motor can be mounted directly on a butterfly valves in order to control the gas and air flow rates on gas burners. It has been designed for applications that require precise, controlled rotary movement between 0° and 90° or 0° or 160°.

There are two ways of checking the current position of the actuator, either using an optional feedback potentiometer or a current sensor.

GT50 motor is controlled by a continuous signal or three-point step signal. The Automatic/Manual mode changeover and the position indicator that can be read externally assist in the setting of the infinitely adjustable switching cams upon commissioning. This enables precise settings even in the low-fire position.

Gear motor GT50..E is controlled via a 4-20mA, 0-20mA, or 0-10V signal.



















GT50-30T20E2

Running time: 30 s

Adjustment angle: 90° (adjustable)

Direction of rotation: Anti-clockwise from 0 to 90°

Mains voltage: 220/240 VAC 50/60 Hz

Torque: 20 Nm

Modulating control: Continuous input signal (4-20mA, 0-20mA, or 0-10V)

Ambient temperature: -20°C to +60 °C

Weight: 2.6 kg

For more information on technical data, please refer to data sheet.
