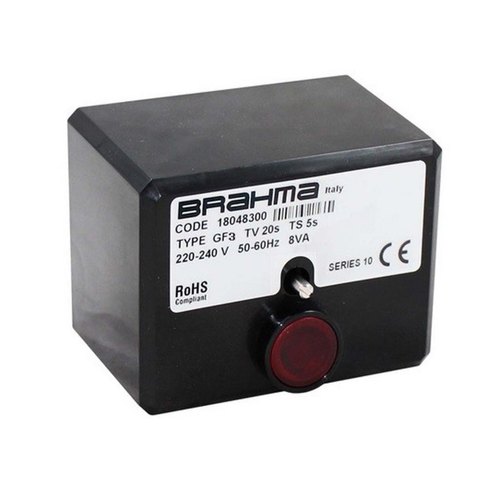

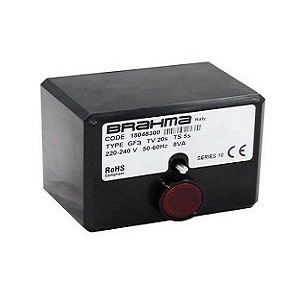

GF3 - Oil Burner Control

Type: GF3 (Serie 03)

Code: 18048300

Photocells: FC7, FC8

Power supply: 220-240V 50-60 Hz

Pre-purge time (TV): 20s

Brand: Brahma, Italy

Stock: 1 pc (subject to availability)

Stock picture: Available on request

Price: Available on request

Application

The electro-mechanial controllers of this series are designed to control oil burners in non-permanent applications.

These controllers are suitable for:

- monoblock burners

- power washers

- hot air generators

- steam boilers

- furnaces

Due to the models technical and constructive features and to their variety they can be used also for the automation of cookers, and of plants employing oil burners generally, whether in domestic or industrial applications.













Power supply: 220-240V 50-60 Hz

Pre-purge time (TV): 20s

Safety time (TS): 5s

Operating temperature: -10...+60 °C

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
